Window Shaft Trim Molding, Replacing

Front Door

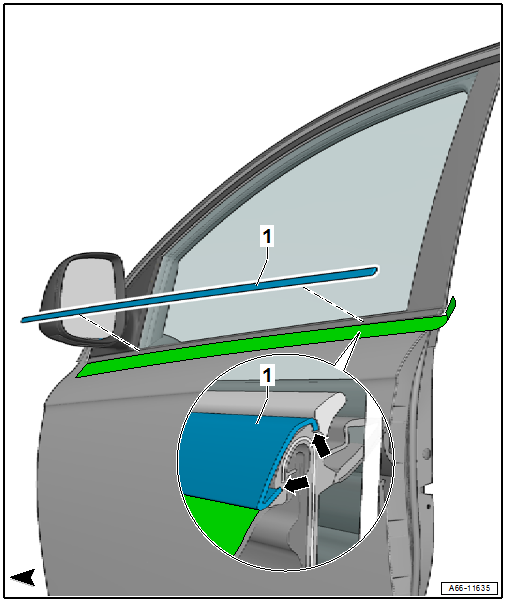

Fig 1: Window Shaft Trim Molding Replacing

Courtesy of AUDI OF AMERICA, LLC

-- Lower the door window.

-- Tape off the body to protect from paint damage on the trim molding -1-.

-- Pry out the trim molding -1- starting at the back from the window shaft seal gaps -arrows- using the Trim Removal Wedge3409 and remove.

-- Coat the gaps -arrows- with soapy water.

-- Place the trim molding -1- on the upper window shaft seal gap -arrow- and adjust longitudinally.

-- Push the trim molding -1- in the lower gap -arrow-.

Rear Door

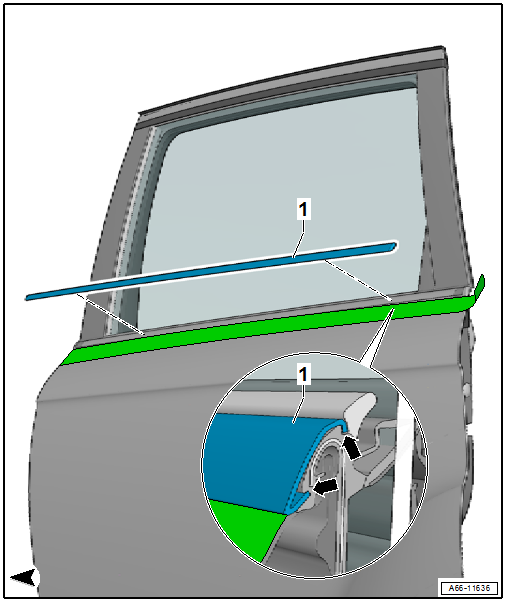

Fig 2: Window Shaft Trim Molding Replacement Components Location

Courtesy of AUDI OF AMERICA, LLC

-- Lower the door window.

-- Tape off the body to protect from paint damage on the trim molding -1-.

-- Pry out the trim molding -1- starting at the back from the window shaft seal gaps -arrows- using the Trim Removal Wedge3409 and remove.

-- Coat the gaps -arrows- with soapy water.

-- Place the trim molding -1- on the upper window shaft seal gap -arrow- and adjust longitudinally.

-- Push the trim molding -1- in the lower gap -arrow-.
