Window Shaft Strips, Removing And Installing

Front Door

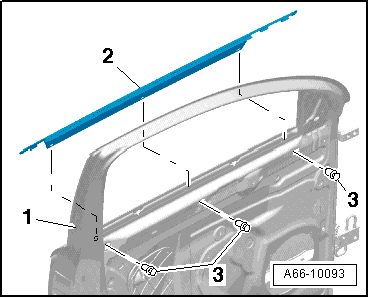

Fig 1: Window Shaft Strips

GWWA66-10093

Courtesy of AUDI OF AMERICA, LLC

-- Door trim removed

-- Exterior rearview mirror removed

-- Run door window down.

-- Release clips -3- and remove them.

-- Lower the door window.

-- Remove shaft strip -2- upward from door -1-.

-- Install in reverse order.

Rear Door

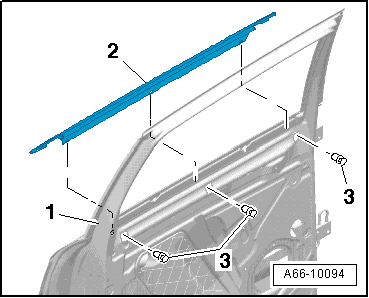

Fig 2: Window Shaft Strips

GWWA66-10094

Courtesy of AUDI OF AMERICA, LLC

-- Door trim removed

-- Run door window down.

-- Release clips -3- and remove them.

-- Lower the door window.

-- Remove shaft strip -2- upward from door -1-.

-- Install in reverse order.
