Plenum Chamber Bulkhead, Removing And Installing

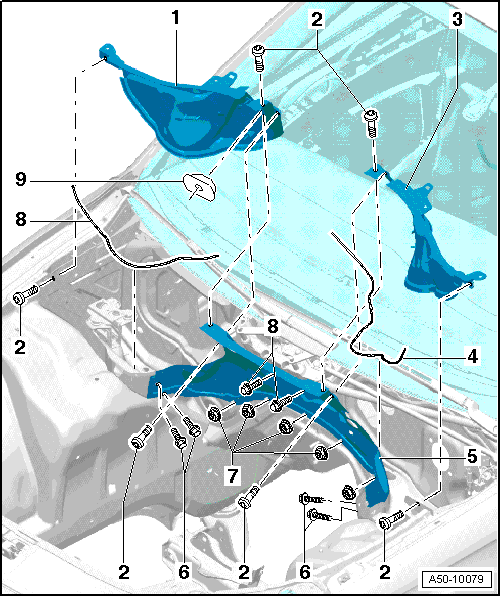

Fig 1: Identifying Plenum Chamber Bulkhead Overview

Courtesy of AUDI OF AMERICA, LLC

1. Right Bulkhead
2. Bolt
   • 8 Nm
3. Left Bulkhead
4. Left Gasket
   • When installing bulkhead, ensure seal is seated correctly.
5. Center Bulkhead
6. Hex Head Bolts
   • 8 Nm
7. Hex Nuts
   • 8 Nm
8. Right Gasket
   • When installing bulkhead, ensure seal is seated correctly.
9. Plugs
   • Press into right bulkhead.
