Sunroof Switch -E8- WITH Sunroof Tilt Button 1 -E582- AND Roof Shade Button 1 -E584-, REMOVING AND INSTALLING: Removal

-- Remove front interior/reading light, refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- If present, remove Interior Monitoring Sensor -G273-, refer to Interior Monitoring Sensor -G273-, REMOVING AND INSTALLING .

-- Disconnect the connectors -2- and -3-.

-- Carefully release catches -arrows- using a small screwdriver.

-- Remove Sunroof Switch -E8- item -1- from interior/reading light in direction of -arrow-.

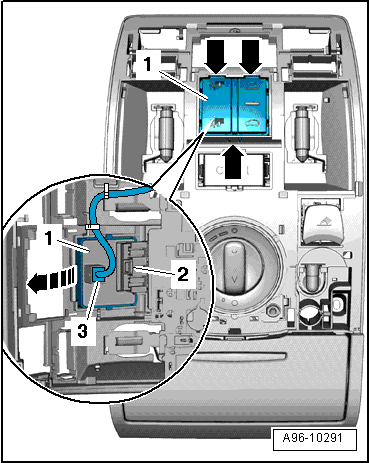

Fig 1: Identifying Sunroof Switch -1- And Connectors -2- & -3-

Courtesy of AUDI OF AMERICA, LLC
