Separating Cover from Padding

Removing

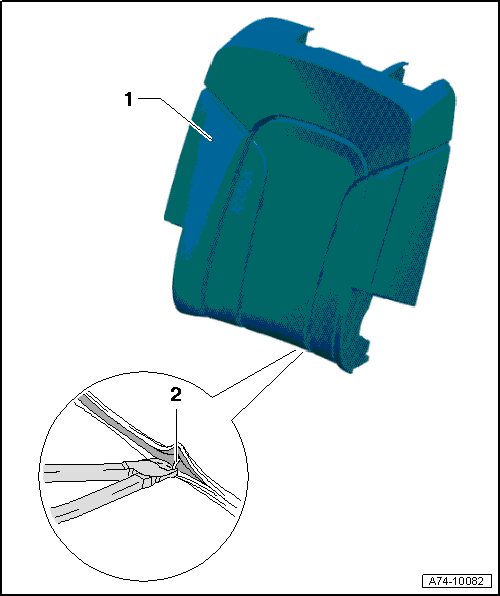

Fig 1: Separating Cover From Padding
GWWA74-10082Courtesy of AUDI OF AMERICA, LLC
  1. Cover and Upholstery
  2. Upholstery Clips

Procedure

-- Cut the upholstery clips -2-.

Fig 2: Identifying Cover And Upholstry Clips
GWWA74-10058Courtesy of AUDI OF AMERICA, LLC

-- Remove cover -1- from cushion -3-.

Installing

Install in reverse order of removal. Observe the following when doing so:

-- When installing new upholstery clips, use Upholstery Clip Pliers VAG1634.
