Separating Cover and Padding from Seat Pan

Removing

-- Remove the seat bench. Refer to SECOND ROW, 3 PASSENGER OVERVIEW .

-- Remove LATCH caps. Refer to LATCH CAP, REMOVING AND INSTALLING .

-- Remove seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING .

-- Remove the seat heating connector.

-- Remove fastening strips -1-.

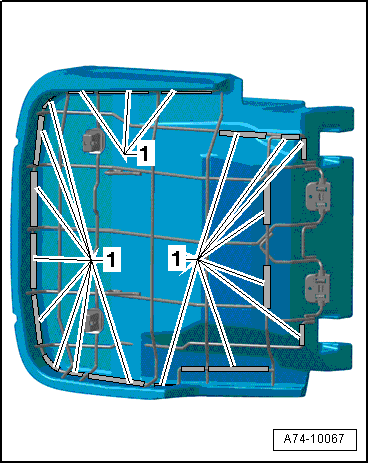

Fig 1: Identifying Fastening Strips -1-
GWWA74-10067Courtesy of AUDI OF AMERICA, LLC

-- Remove cover and padding.

Installing

Install in reverse order of removal.
