Backrest Heating Element, Removing And Installing: Removing

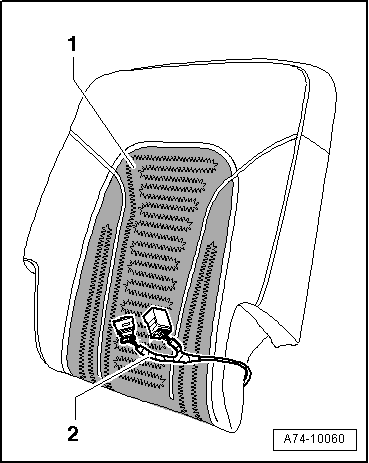

Fig 1: Heating Element And Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove backrest cover:

• 2nd row individual seat. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING .

-- Cut wire -2- off of old heating element -1-.
