Headrest Guides, Removing And Installing: Removing

-- Remove center seat headrest. Refer to CENTER HEAD RESTS, REMOVING AND INSTALLING .

Headrest Guide with Release Button:

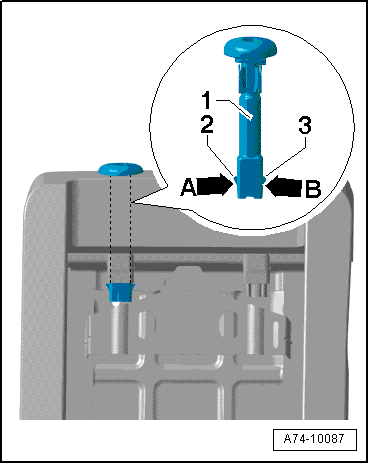

Fig 1: Press Retaining Tab -2- In -Direction Of Arrow A- And Retaining Tab -3- In -Direction Of Arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Press retaining tab -2- in direction of -arrow A- and retaining tab -3- in direction of -arrow B-.

-- Pull headrest guide -1- upward out of mount.

Headrest Guide without Release Button:

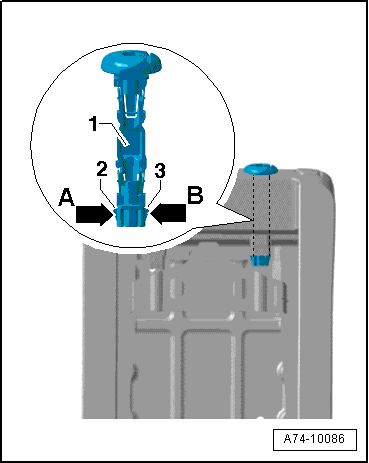

Fig 2: Press Retaining Tab -2- In -Direction Of Arrow A- And Retaining Tab -3- In -Direction Of Arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Press retaining tab -2- in direction of -arrow A- and retaining tab -3- in direction of -arrow B-.

-- Pull headrest guide -1- upward out of mount.

NOTE:

Check headrest guides for damage after removal and replace if necessary.
