Bumper Cover Tail Lamp Bulbs, Removing And Installing

Removal

-- Remove the tail lamps, refer to TAIL LAMPS AND BULB HOLDERS, REMOVING AND INSTALLING .

-- Turn the socket counter-clockwise in direction of -arrow- and remove it from the tail lamp housing.

-- Remove bulb from socket.

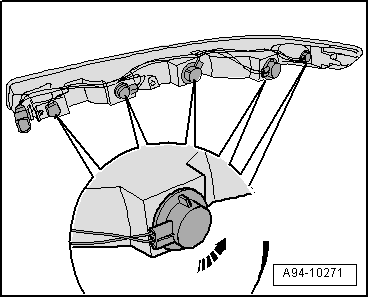

Fig 1: Turning Socket Counter-Clockwise

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert the new bulb in the socket without touching the bulb with bare hands.

-- Secure socket by turning clockwise.

-- Install the tail lamps, refer to TAIL LAMPS AND BULB HOLDERS, REMOVING AND INSTALLING .
