Daytime Running Lamp, Removing And Installing

Removal

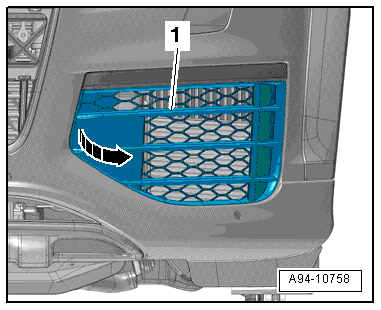

Fig 1: Removing Bumper Cover Air Inlet Grille

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper cover air inlet grille -1- -arrow B-.

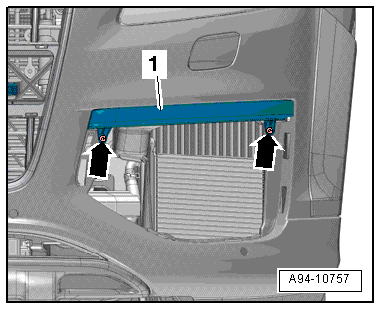

-- Remove screws -arrows- and remove housing -1- from bumper cover.

Fig 2: Disconnecting Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector.

Installation

Fig 3: Installing Connector

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

If LED's are malfunctioning, daytime running lamp must be completely replaced.

-- Insert housing in bumper.

Tightening Specifications

Component	Nm
Daytime running lamp to bumper cover	2, 5
