Overview - Radiator/Coolant Fan

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Danger of personal injury due to the coolant fan turning on by itself.

Disconnect the connectors before working near the fan shroud.

Radiator and Coolant Fan

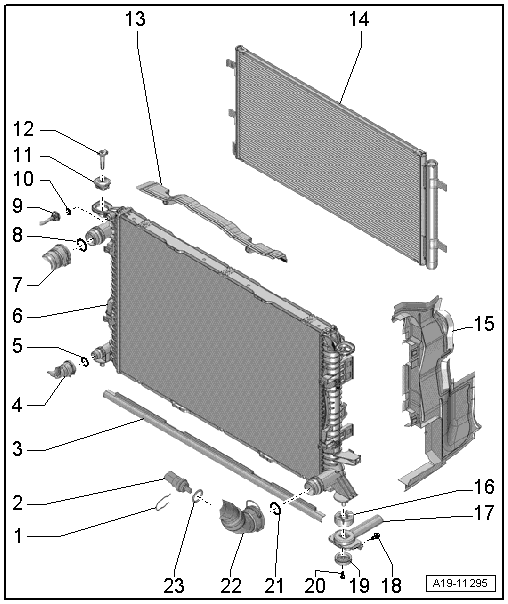

Fig 1: Exploded View Of Radiator/Coolant Fan

Courtesy of AUDI OF AMERICA, LLC

Clamp
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing, refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
Air Guide
Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 3
O-Ring
- Replace
Radiator
- With ATF cooler
- Removing and installing, refer to RADIATOR, REMOVING AND INSTALLING .
- After replacing, replace all the coolant.
Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 3
O-Ring
- Replace
Coolant Line
- To the coolant reservoir
- To remove, press the release ring
- Connecting, refer to Fig 3
O-Ring
- Replace
Rubber Bushing
- For the radiator
Retaining Pin
- Disengage and remove using screwdriver
Air Guide
Condenser
- Removing and installing, refer to CONDENSER, REMOVING AND INSTALLING .
Air Guide
Rubber Bushing
- For the radiator
Radiator Bracket
- Different versions. For the correct allocation, refer to the Parts .
Bolt
- 5 Nm
Rubber Buffer
Bolt
- 4.5 Nm
O-Ring
- Replace
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 3
O-Ring
- Replace

Fan Shroud and Coolant Fan

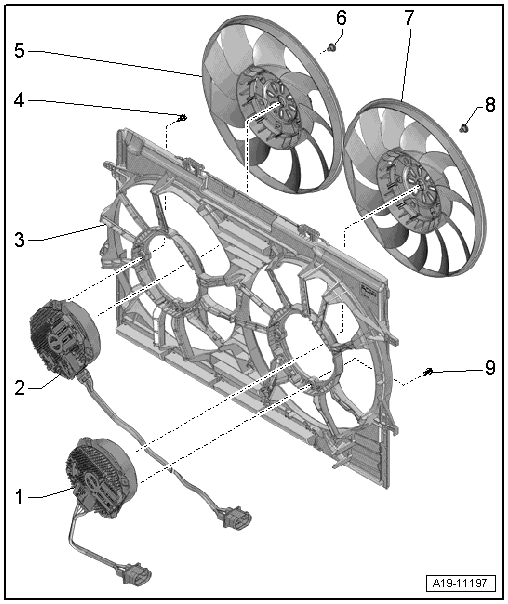

Fig 2: Identifying Fan Shroud And Radiator Fan

Courtesy of AUDI OF AMERICA, LLC

Coolant Fan 2 -V177-
- With Coolant Fan Control Module 2 -J671-
- Removing and installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
Coolant Fan -V7-
- With Coolant Fan Control Module -J293-
- Removing and installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
Fan Shroud
- Removing and installing, refer to FAN SHROUD, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
Fan Wheel
- The bolt must lock into the hole.
Bolt
- 5 Nm
Fan Wheel
- The bolt must lock into the hole.
Bolt
- 5 Nm
Bolt
- 3.5 Nm

Fig 3: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

-- Remove the old O-ring -2- in the coolant hose -3-.

-- Coat the new O-ring with coolant and install it in the coolant hose.

-- Press the coolant hose onto the connection -1- until it engages audibly.

-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
