On-Vehicle Inspection [10/2013 - ]
WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT GARAGE DOOR OPENER
- Press each switch and check that the red LED turns on. If one or more of the switches does not turn on the LED, check the condition of the fuse and wire harness. If the fuse and wire harness are malfunctioning, repair or replace them. If not, replace the inner rear view mirror assembly (garage door opener). Refer to REMOVAL [10/2013 - ]
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

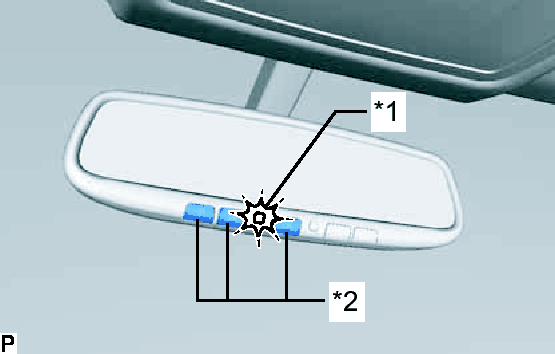

TEXT IN ILLUSTRATION*1 LED *2 Garage Door Opener ("Homelink") Switches
- Press each switch and check that the red LED turns on. If one or more of the switches does not turn on the LED, check the condition of the fuse and wire harness. If the fuse and wire harness are malfunctioning, repair or replace them. If not, replace the inner rear view mirror assembly (garage door opener). Refer to REMOVAL [10/2013 - ]
.
- INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING
HINT:
Use the "HomeLink" tester and a tester transmitter for this test. First clear the customer transmitter codes, and then register the tester transmitter code.
- Check if the tester transmitter code was successfully registered.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

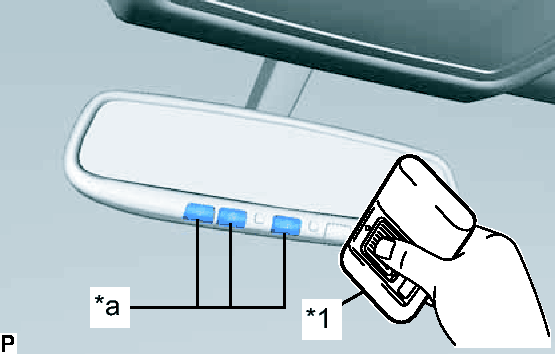

TEXT IN ILLUSTRATION*1 Tester Transmitter *a Press one of the Garage Door Opener ("Homelink") Switches. HINT:
- Any garage door opener ("HomeLink") switch can be pressed.
- If the code cannot be registered, replace the inner rear view mirror assembly (garage door opener). Refer to REMOVAL [10/2013 - ] .

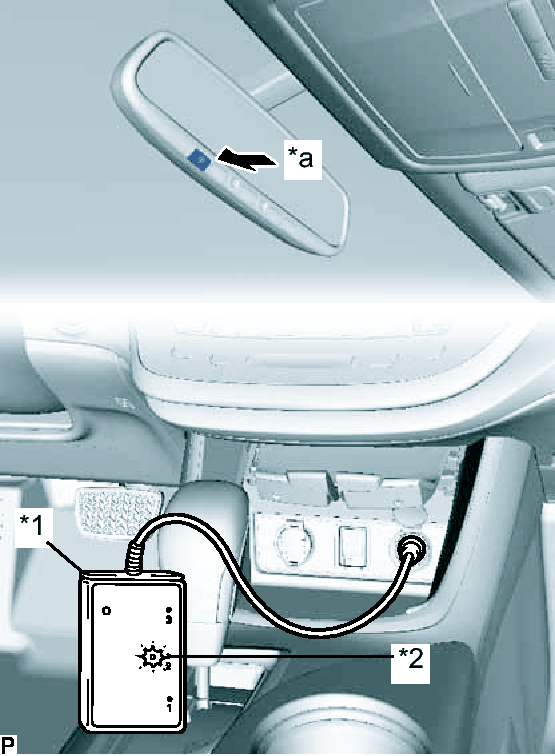

- Press a garage door opener ("HomeLink") switch. Check if the green LED of the "HomeLink" tester illuminates.TEXT IN ILLUSTRATION
*1 "HomeLink" Tester *2 Green LED *a Press HINT:
If the green LED does not illuminate, replace the inner rear view mirror assembly (garage door opener). Refer to REMOVAL [10/2013 - ] .
- When the inspection is complete, register the customer transmitter code(s) again.
HINT:
- Registration of the customer transmitter code(s) may not be possible in the service facility if the customer's transmitters are not available or if any of the buttons are used for rolling code-type systems.
- Refer to the Owner's Manual for additional information about registration (programming) of transmitter codes.
- Check if the tester transmitter code was successfully registered.
