Camber Adjustment Values On The Front Axle For RHD Vehicles And Standard Suspension (1BA)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

If the vehicle has RHD and the standard chassis (1BA), then check and adjust the camber on the front axle according to the height of the vehicle.

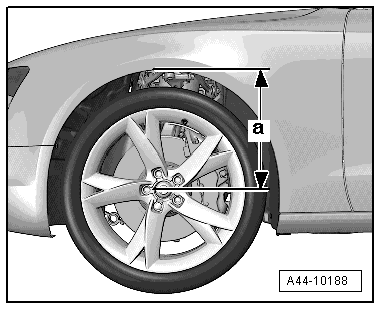

Fig 1: Measuring Vehicle Height -a-

Courtesy of AUDI OF AMERICA, LLC

-- Measure the vehicle height -a- at the right and left front wheels between the center of the wheel and the lower edge of the fender.

Maximum permissible difference in height between the right and left ≤ 10 mm

Calculating the Camber Adjustment Value:

Camber adjustment value = -43' + [(vehicle height left + vehicle height right) : 2] - 391

NOTE:

1' camber = 1 mm vehicle height

The Camber Values Are Defined in the Following Table Based on the Vehicle Heights at the Front Axle.

Camber Adjustment Values on the Front Axle for RHD Vehicles and Standard Suspension (1BA)
Vehicle height			Camber			Maximum permissible difference in height between the right and left
Drift	Left and right average absolute value Wheel	Average Delta or specified vehicle height in mm	Test - adjustment dimension	Tolerance	Maximum permissible difference between both sides
too high	401	10	-33'	± 23'	30'	≤ 10 mm
	400	9	-34'
	399	8	-35'
	398	7	-36'
	397	6	-37'
	396	5	-38'
	395	4	-39'
	394	3	-40'
	393	2	-41'
	392	1	-42'
specified	391	0	-43'
to low	390	-1	-44'
	389	-2	-45'
	388	-3	-46'
	387	-4	-47'
	386	-5	-48'
	385	-6	-49'
	384	-7	-50'
	383	-8	-51'
	382	-9	-52'
	381	-10	-53'

Additional vehicle data for vehicles with FWD and AWD:

This additional vehicle data only serves for a faster diagnosis in the case of accidents.

Table. Refer to TECHNICAL DATA .

Specified values valid for all engine versions.
