Overview - Spoiler

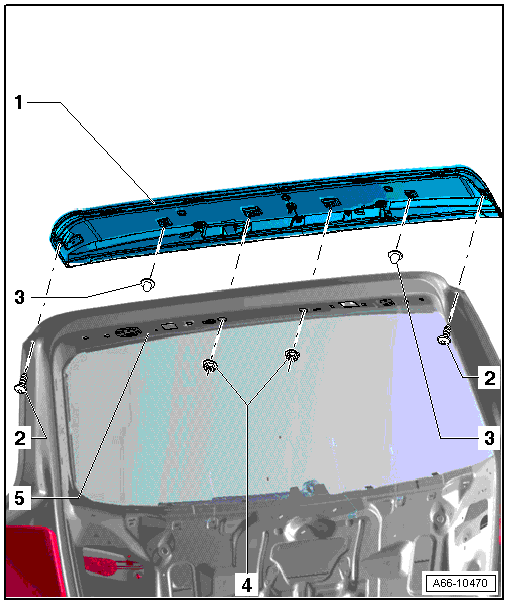

Fig 1: Identifying Roof Spoiler Assembly

GWWA66-10470

Courtesy of AUDI OF AMERICA, LLC

Roof Spoiler
- Removing:
  -- Remove the rear lid trim panel. Refer to OVERVIEW - UPPER REAR LID TRIM PANEL

  -- Disconnect the antenna and brake lamp connectors.

  -- Remove the antenna amplifier.

  -- Remove the screws and nuts and then remove the roof spoiler from the rear lid.
Bolt
- 2.5 Nm
Clip
- Quantity: 4
Nut
- Self-locking, replace after removing.
- 2.5 Nm
Rear Lid
