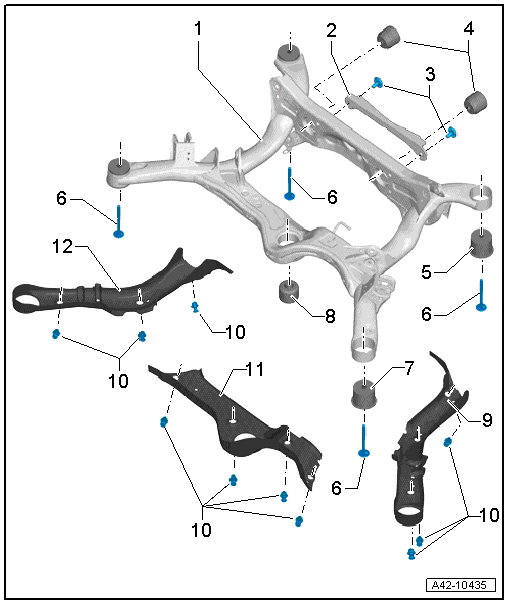

Overview - SUBFRAME
- Subframe
- Subframe with attachments, removing and installing, refer to SUBFRAME, REMOVING AND INSTALLING .
- It is necessary to program the control position if the subframe was removed and installed, refer to CONTROL POSITION, PROGRAMMING .
- If the control position was reprogrammed on vehicles with lane assist, the Camera Control Module -J852- must be calibrated again, refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Brace
- Installed depending on the market, allocation
- Bolt
- 17 Nm
- Rear Bonded Rubber Bushing
- For the rear final drive mount
- Replacing, refer to REAR BONDED RUBBER BUSHING FOR REAR FINAL DRIVE, REMOVING AND INSTALLING .
- Rear Bonded Rubber Bushing
- For the subframe mounting
- There are different versions for the correct allocation .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Replacing, refer to SUBFRAME FRONT HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Always replace on both sides.
- Bolt
- 115 Nm + 90°
- Always replace if removed
- Front Bonded Rubber Bushing
- For the subframe mounting
- There are different versions for the correct allocation .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Replacing, refer to SUBFRAME FRONT HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Always replace on both sides.
- Front Bonded Rubber Bushing
- For the rear final drive mount
- Replacing, refer to FRONT BONDED RUBBER BUSHING FOR REAR FINAL DRIVE, REMOVING AND INSTALLING .
- Left Stone Chip Protection
- Not installed on all vehicles.
- Clip
- Not installed on all vehicles.
- Center Stone Chip Protection
- Not installed on all vehicles.
- Right Stone Chip Protection
- Not installed on all vehicles.
