Trailer Hitch Outlet And Towing Recognition Control Module Overview

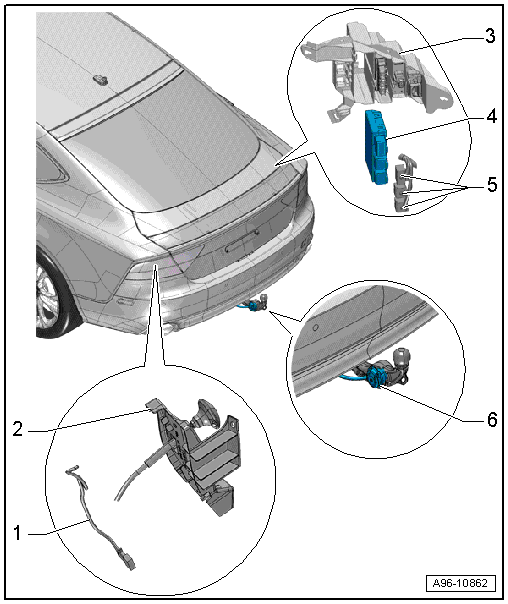

Fig 1: Identifying Trailer Outlet and Towing Recognition Control Module Overview

Courtesy of AUDI OF AMERICA, LLC

1. LED Indicator Lamp
   • Trailer hitch -locked- indicator lamp -K226-, Trailer hitch -unlocked- indicator lamp -K227-
   • Make sure the trailer hitch is locked correctly.
   • Removing and installing, refer to LED INDICATOR LAMP .
2. Mount
   • For the cable.
   • For unlocking the trailer hitch.
3. Upper Frame
   • For the Towing recognition control module -J345-.
4. Towing Recognition Control Module -J345-
   • Removing and installing, refer to TOWING RECOGNITION CONTROL MODULE -J345- .
5. Connectors
6. Trailer Socket -U10-
   • For removing and installing, refer to CONNECTOR ASSIGNMENT ON TRAILER HITCH SOCKET
   • For the connector assignments, refer to CONNECTOR ASSIGNMENT ON TRAILER HITCH SOCKET
