Instrument Panel Lamps And Switches Overview: Notes

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

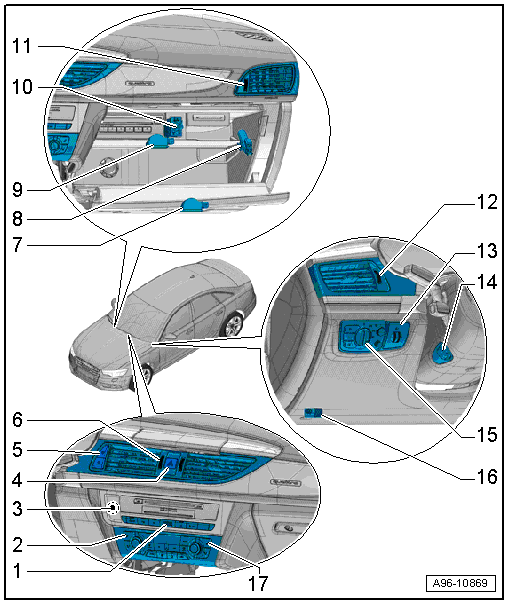

Fig 1: Identifying Instrument Panel Lamps And Switches Overview

Courtesy of AUDI OF AMERICA, LLC

1. Switch Unit
   • With Start/Stop mode button -E693-, parallel parking assistance button -E581-, parking aid button -E266-, front passenger airbag disabled indicator lamp -K145-, rear spoiler switch -E127-, ASR/ESP button -E256-
   • Removal and installation, refer to SWITCH UNIT WITH -E693-, -E581-, -E266-, -K145-, -E127-, -E256-
2. Left Seat Heating Button -E653-
   • Integrated in the Climatronic control module -J255- and cannot be replaced separately if faulty
   • For replacing the Climatronic Control Module -J255-, refer to Display And Control Head
3. Anti-Theft Immobilizer Reading Coil -D2-
   • Overview, refer to STEERING COLUMN SWITCH MODULE AND ELECTRONIC IGNITION LOCK OVERVIEW
4. Emergency Flasher Button -E229-
   • Removal and installation, refer to Emergency Flasher Button -E229-
5. Switch Unit
   • With front display open/close button -E462-, display unit button -E506-
   • Removal and installation, refer to SWITCH UNIT WITH FRONT DISPLAY OPEN/CLOSE BUTTON AND DISPLAY UNIT BUTTON -E462-, -E506-
6. Center Instrument Panel Vent
   • Vehicles with left and right Center Instrument Panel Vent Illumination Bulb -L68-
   • Cannot be replaced separately if faulty
   • Removal and installation, refer to Center Instrument Panel Vent
7. Right Front Footwell Illumination Bulb -L152-
   • Removal and installation, refer to FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-
8. Glove Compartment Lamp Switch -E26-
   • Removal and installation, refer to Glove Compartment Lamp Switch -E26-
9. Glove Compartment Lamp -W6-
   • 12 V, 5 W
   • Removal and installation, refer to Glove Compartment Lamp -W6-
10. Valet Parking Lock Button/Front Passenger Airbag Deactivation Key Switch
    • Equipment level
    • Valet parking lock button -E536-, removing and Installing, refer to Valet Parking Lock Button -E536-
11. Right Instrument Panel Vent Illumination Bulb -L69-
    • Equipment level
    • Cannot be replaced separately if faulty
    • Removal and installation, refer to Instrument Panel Vent Cover
12. Left Instrument Panel Vent Illumination Bulb -L67-
    • Equipment level
    • Cannot be replaced separately if faulty
    • Removal and installation, refer to Instrument Panel Vent Cover
13. Headlamp Adjuster -E102-
    • Removal and installation, refer to Headlamp Range Control Adjuster -E102-
14. Steering Column Adjustment Switch -E167-
    • With steering wheel heating button -E522-
    • Removal and installation, refer to Steering Column Adjustment Switch -E167- AND Steering Wheel Heating Button -E522-
15. Headlamp Switch -E1-
    • With the instrument panel illumination dimmer switch -E20-
    • With rear fog lamp button -E314-, fog lamp button -E315-, night vision camera button -E680-
    • Removal and installation, refer to Light Switch -E1-
16. Left Front Footwell Illumination -L151-
    • Removal and installation, refer to FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-
17. Right Seat Heating Button -E654-
    • Integrated in the Climatronic Control Module -J255- and cannot be replaced separately if faulty
    • For replacing the Climatronic Control Module -J255-, refer to Display And Control Head
