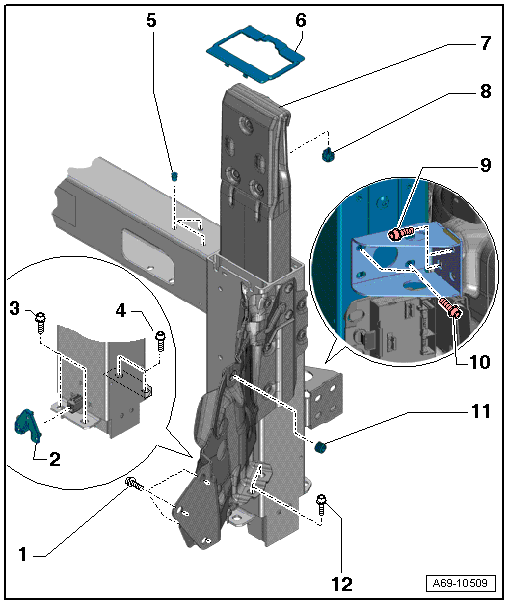

Overview - Rollover Protection: Notes
WARNING:
- Loosen only those bolts shown in the illustration.
- Never remove the support plates from the rollover protection.
- Bolt
- 23 Nm
- Quantity: 6
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
- Bracket
- For the connector
- Removing and Installing. Refer to CONNECTOR BRACKET, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Quantity: 4
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
- Bolt
- 23 Nm
- Quantity: 4
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
- Pop Rivet Nuts
- Quantity: 6
- Removing and Installing. Refer to REAR HEADREST POP RIVET NUT, REMOVING AND INSTALLING .
- Trim
- Quantity: 2
- Clipped to the rollover protection
- Removing and Installing. Refer to ROLLOVER SUPPORT TRIM, REMOVING AND INSTALLING .
- Rollover Protection
- Rollover protection shown in its extended position
- Removing and Installing. Refer to ROLLOVER PROTECTION, REMOVING AND INSTALLING .
- Measure in the body. Refer to ROLLOVER PROTECTION IN BODY, ALIGNING .
- Guide
- Inserted in the rollover support
- Removing and Installing. Refer to ROLLOVER SUPPORT GUIDE, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Quantity: 4
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
- Bolt
- 23 Nm
- Quantity: 4
- Pre-assembled loosely in the original part
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
- Adjusting Screw
- For the side trim panel
- Bolt
- 23 Nm
- Quantity: 4
- If it was removed because of an accident, replace the bolt
- Tightening sequence. Refer to Figure.
