Overview - Airbag Control Module

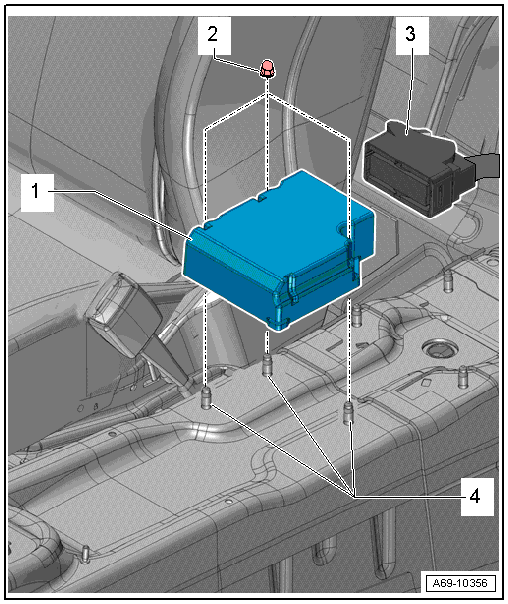

Fig 1: Airbag Control Module Exploded View
GWWA69-10356Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Airbag Control Module -J234-
  2. Nut
    • 9 Nm
    • Quantity: 3
    • The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
  3. Connector
  4. Threaded Pins
    • The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
