Home >> Audi >> 2012 >> A5 2.0T >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagram (CDNB, CDNC, CAEB, CAEA) (Cabriolet) >> Wiring Diagram >> WASTEGATE Bypass Regulator Valve, EVAP Canister Purge Regulator Valve 1, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Oil Pressure Regulation Valve >> Notes

WASTEGATE Bypass Regulator Valve, EVAP Canister Purge Regulator Valve 1, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Oil Pressure Regulation Valve: Notes

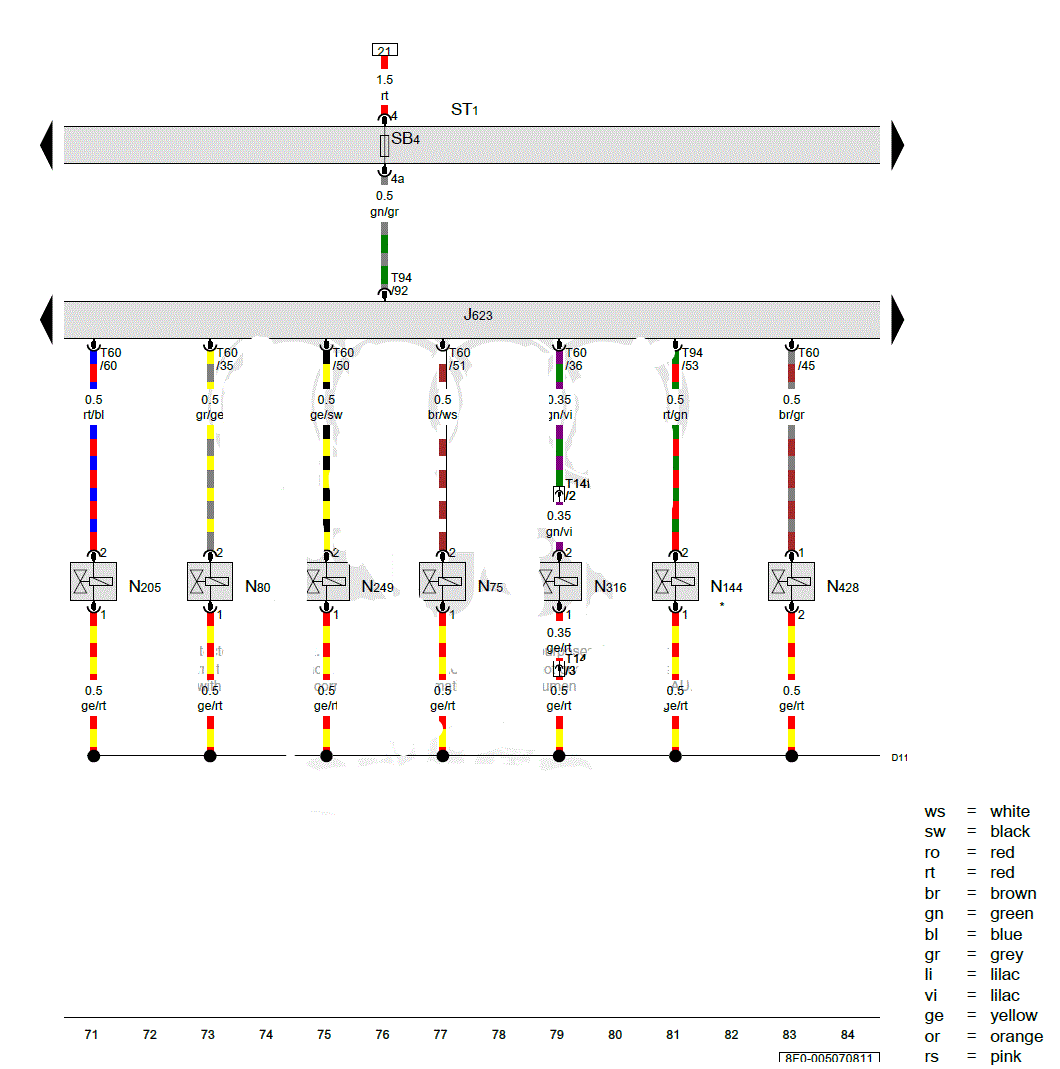

G00591808Courtesy of AUDI OF AMERICA, LLC
