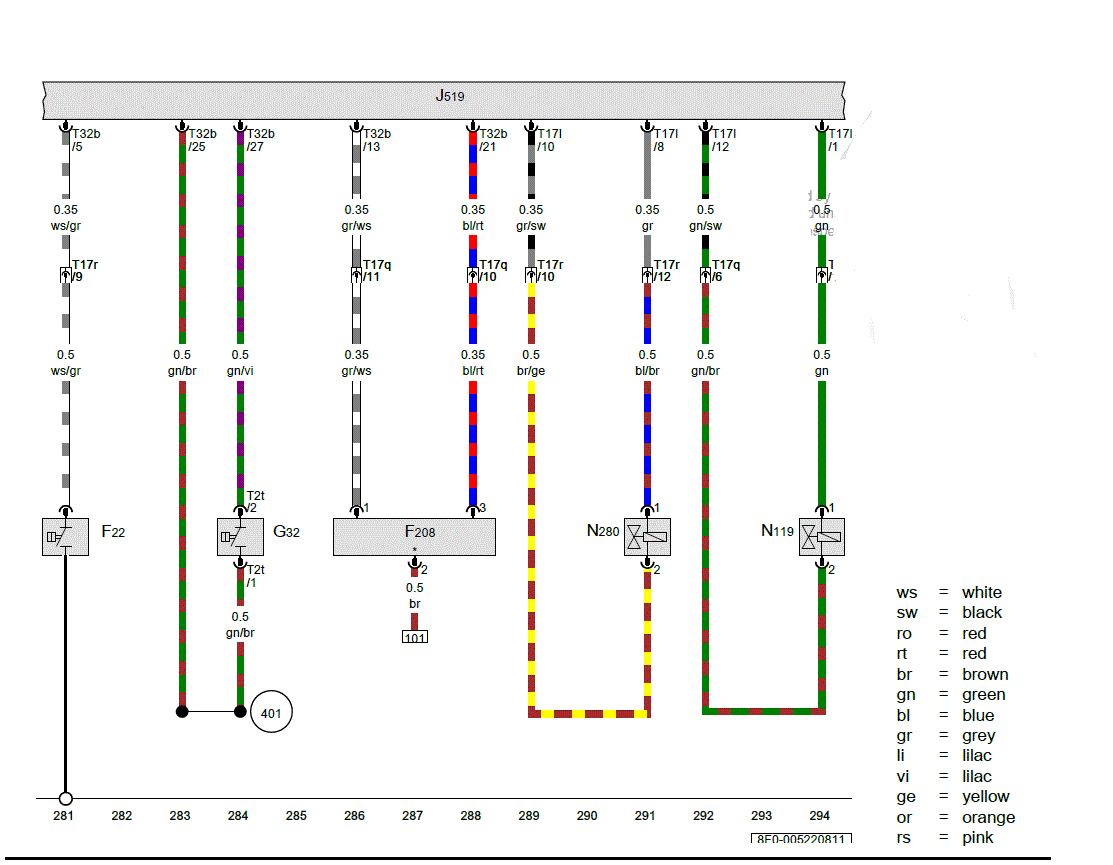

Oil Pressure Switch, Engine Coolant Level Sensor, Vehicle Electrical System Control Module: Notes

G00591823

Courtesy of AUDI OF AMERICA, LLC
