Home >> Audi >> 2012 >> A5 2.0T >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagram (CDNB, CDNC, CAEB, CAEA) (Cabriolet) >> Wiring Diagram >> MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay >> Notes

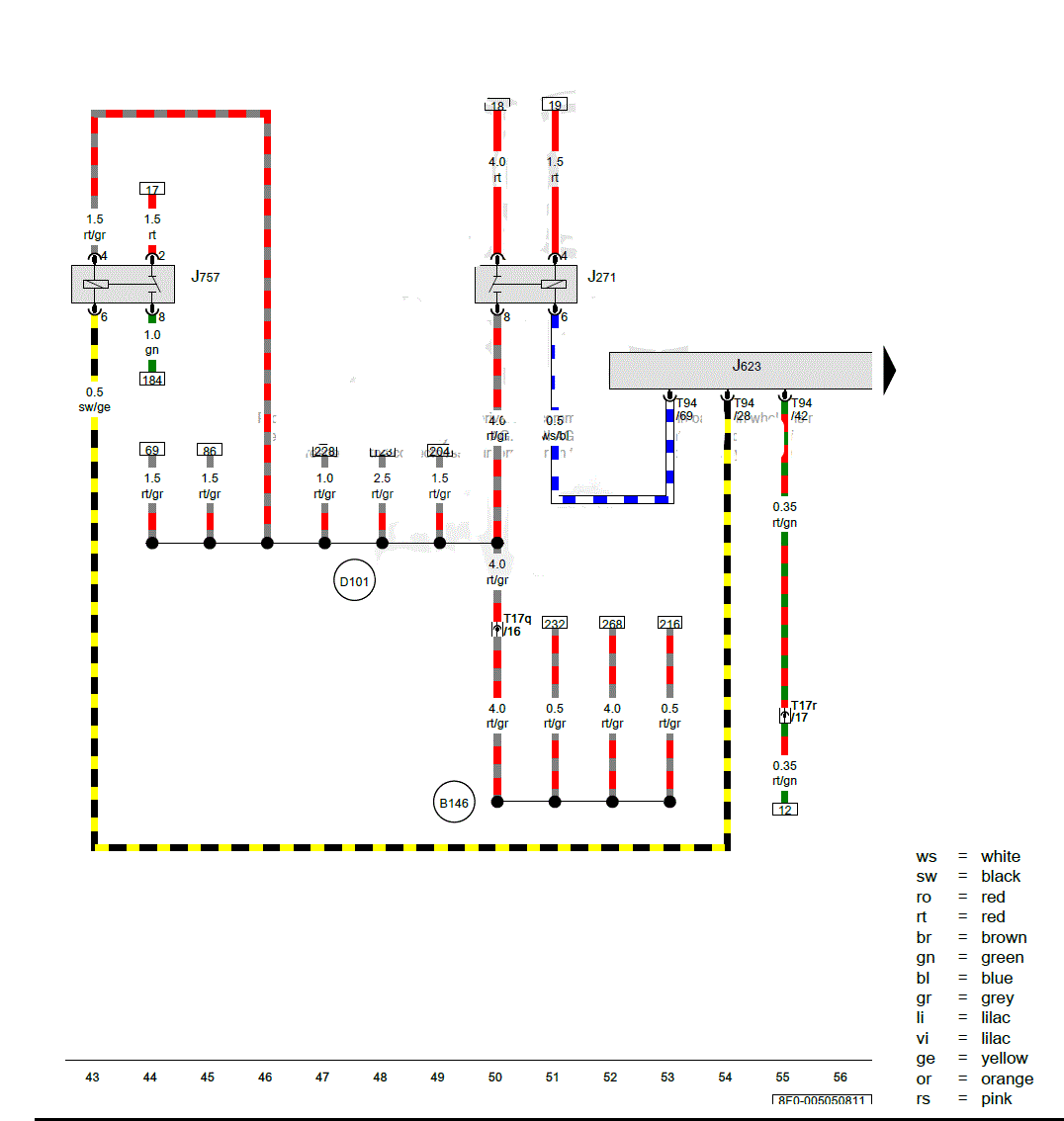

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay: Notes

G00591806

Courtesy of AUDI OF AMERICA, LLC
