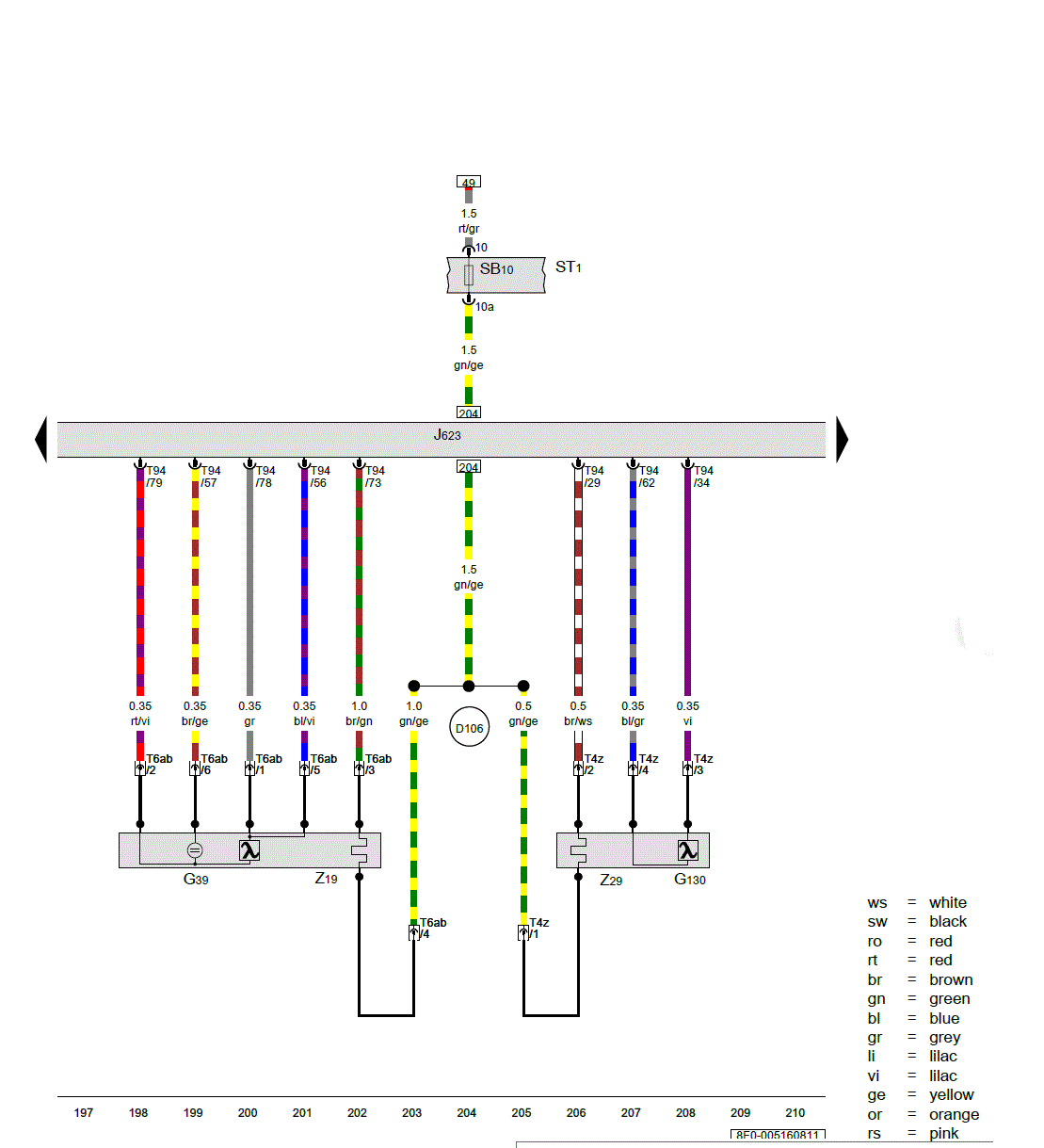

Heated Oxygen Sensor, Oxygen Sensor After Three Way Catalytic Converter: Notes

G00591817

Courtesy of AUDI OF AMERICA, LLC
