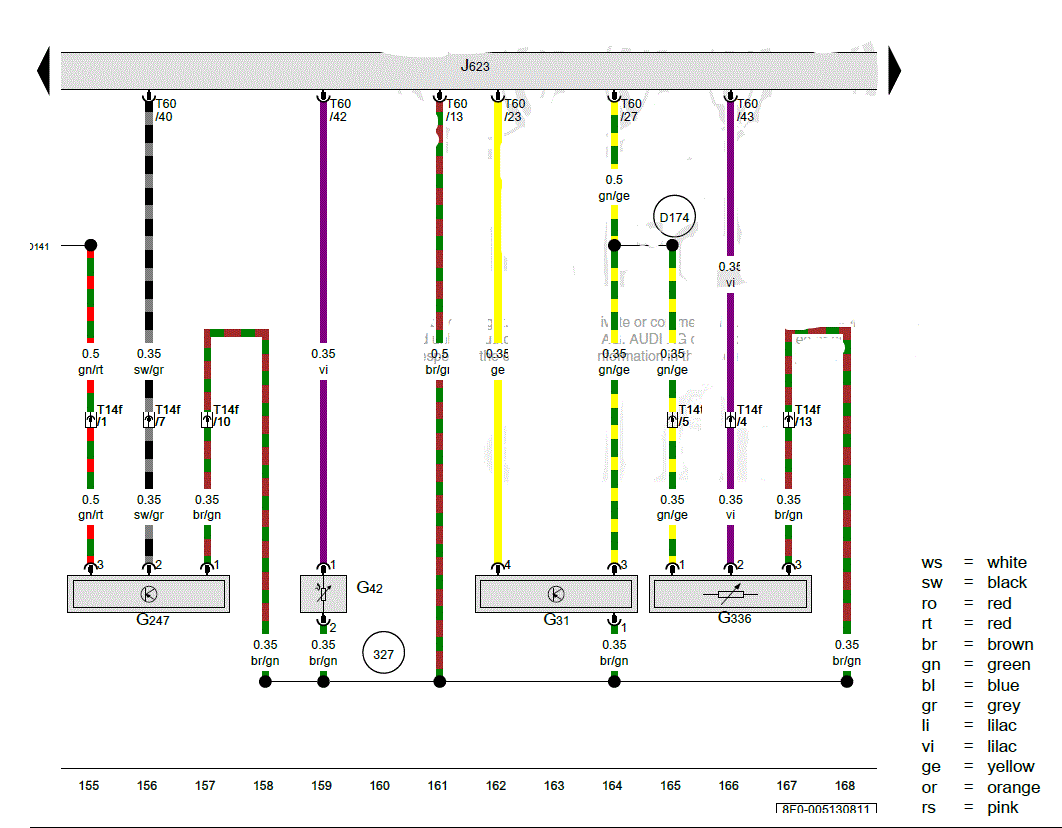

Fuel Pressure Sensor, Intake Manifold Runner Position Sensor: Notes

G00591814

Courtesy of AUDI OF AMERICA, LLC
