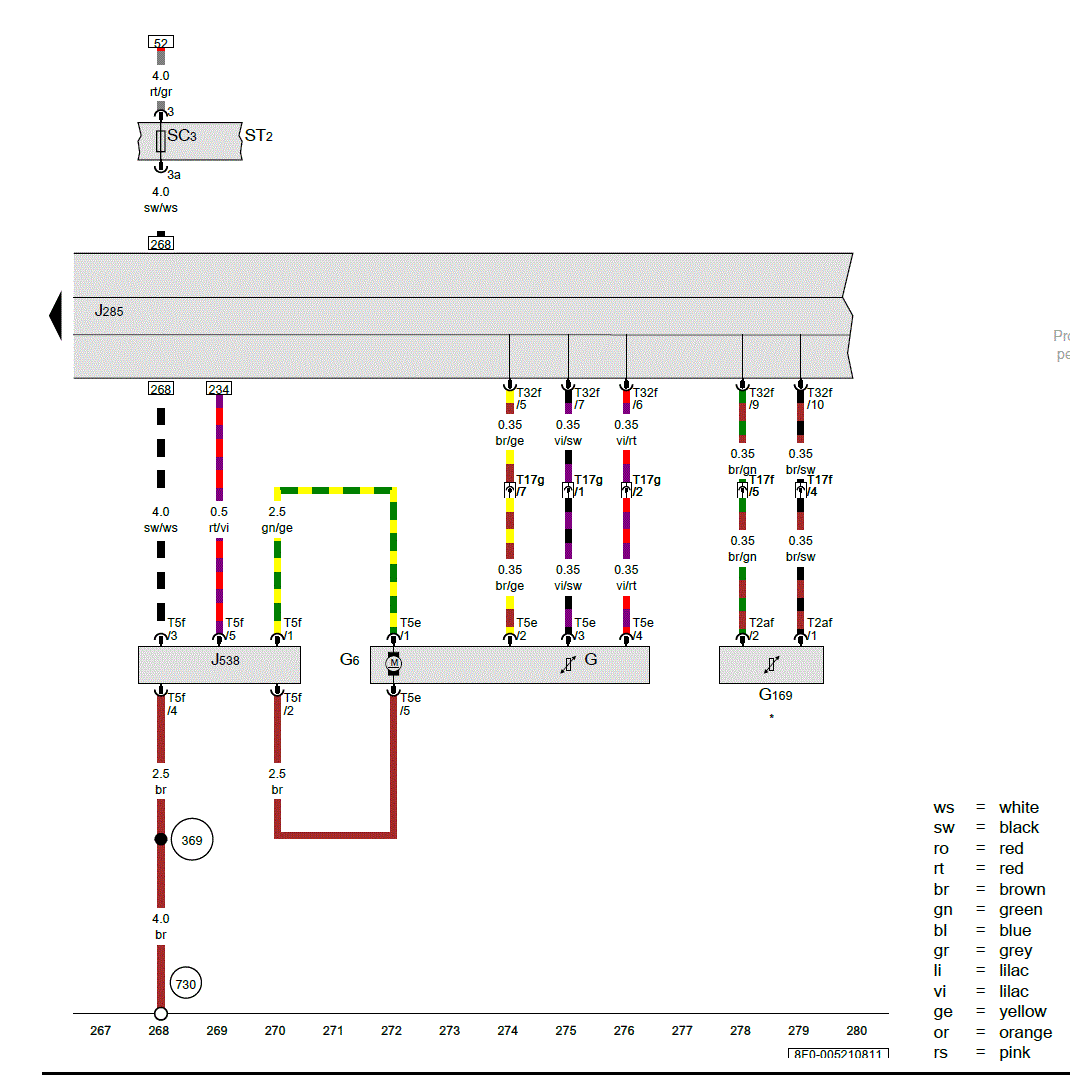

Fuel Level Sensor, Transfer Fuel Pump, Instrument Cluster Control Module, Fuel Pump Control Module: Notes

G00591822

Courtesy of AUDI OF AMERICA, LLC
