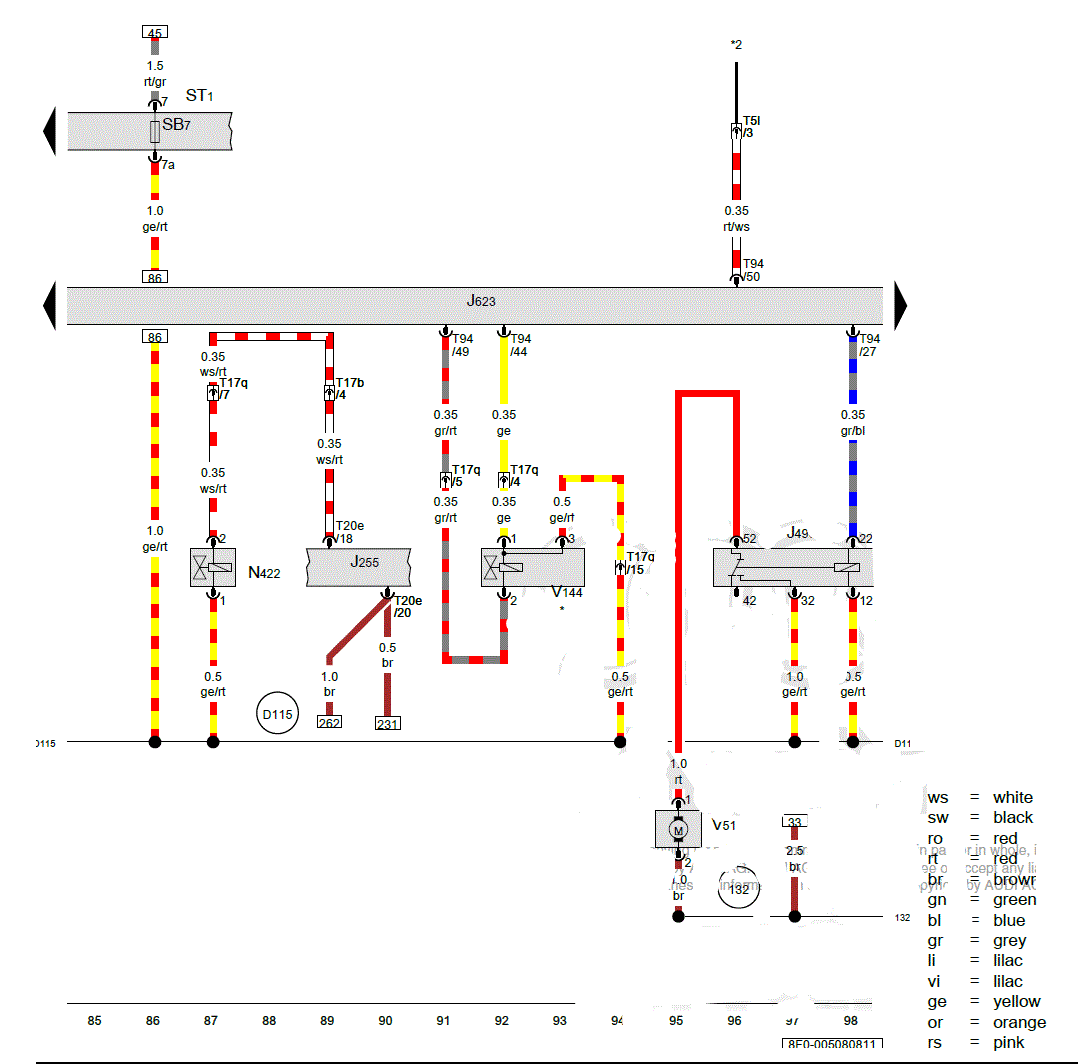

CLIMATRONIC Refrigerant Shut-Off Valve, After-Run Coolant Pump: Notes

G00591809

Courtesy of AUDI OF AMERICA, LLC
