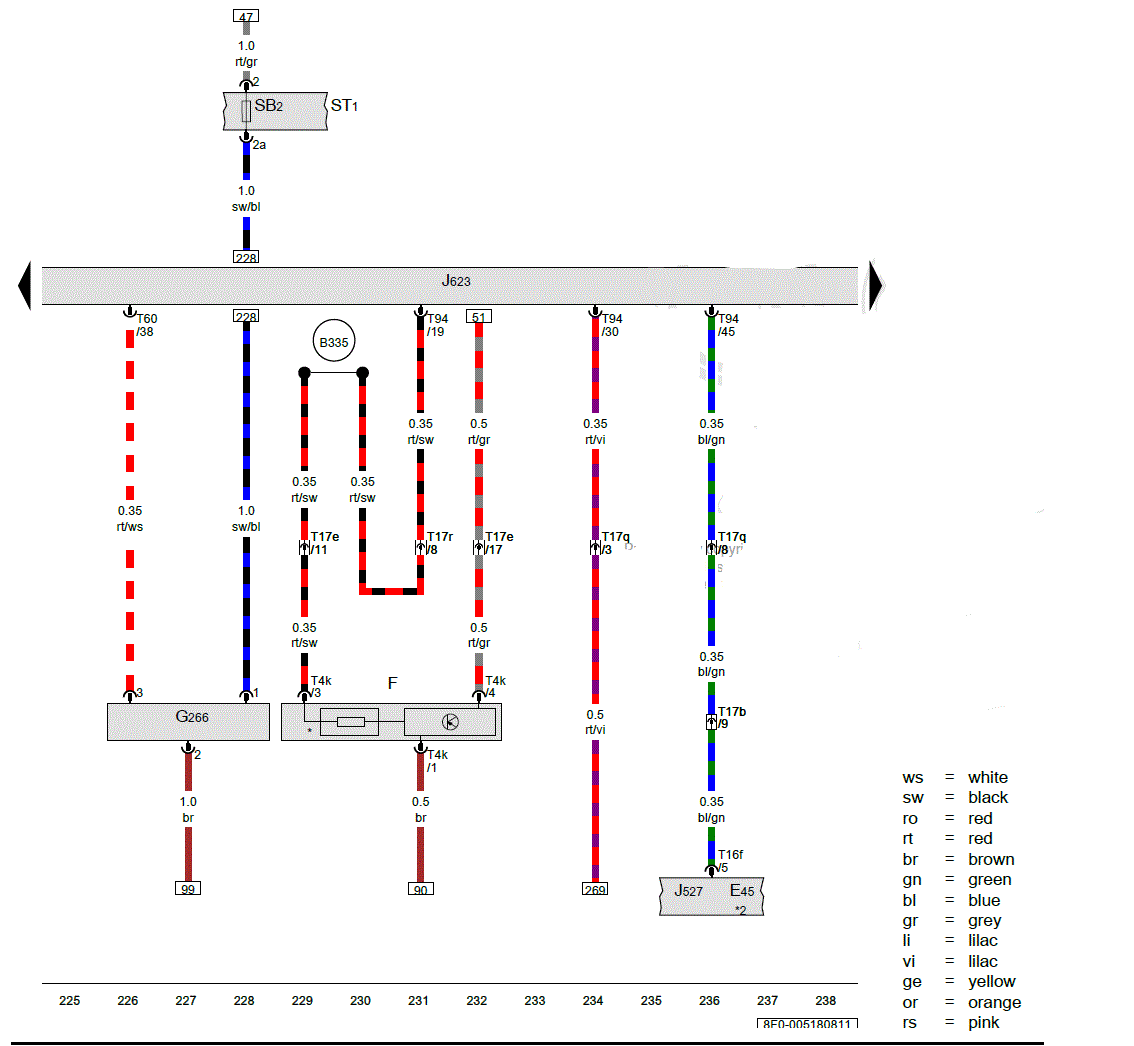

Brake Lamp Switch, Steering Column Electronics Control Module: Notes

G00591819

Courtesy of AUDI OF AMERICA, LLC
