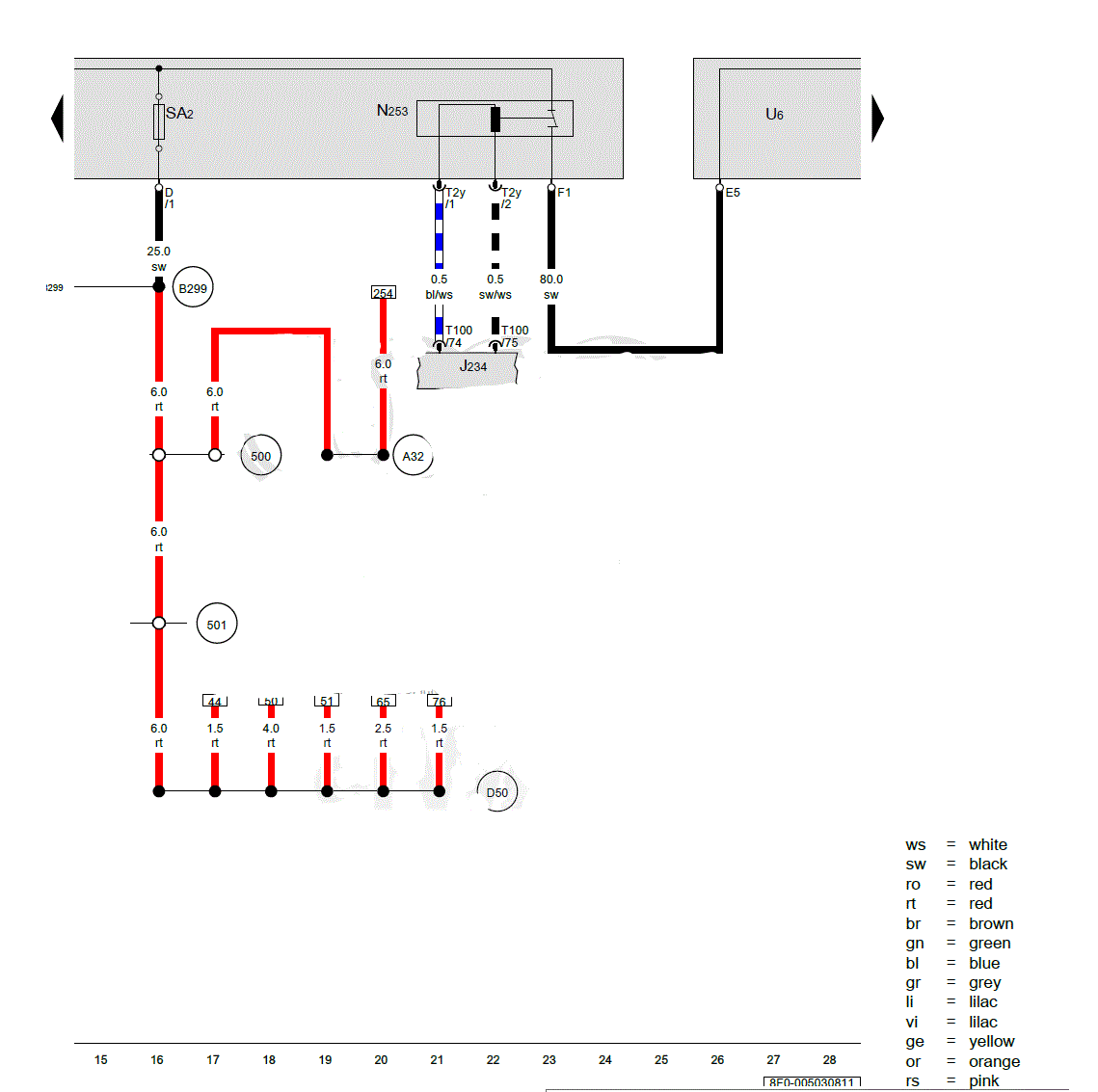

Battery Interrupt Igniter, Battery Jump Start Terminal: Notes

G00591804

Courtesy of AUDI OF AMERICA, LLC
