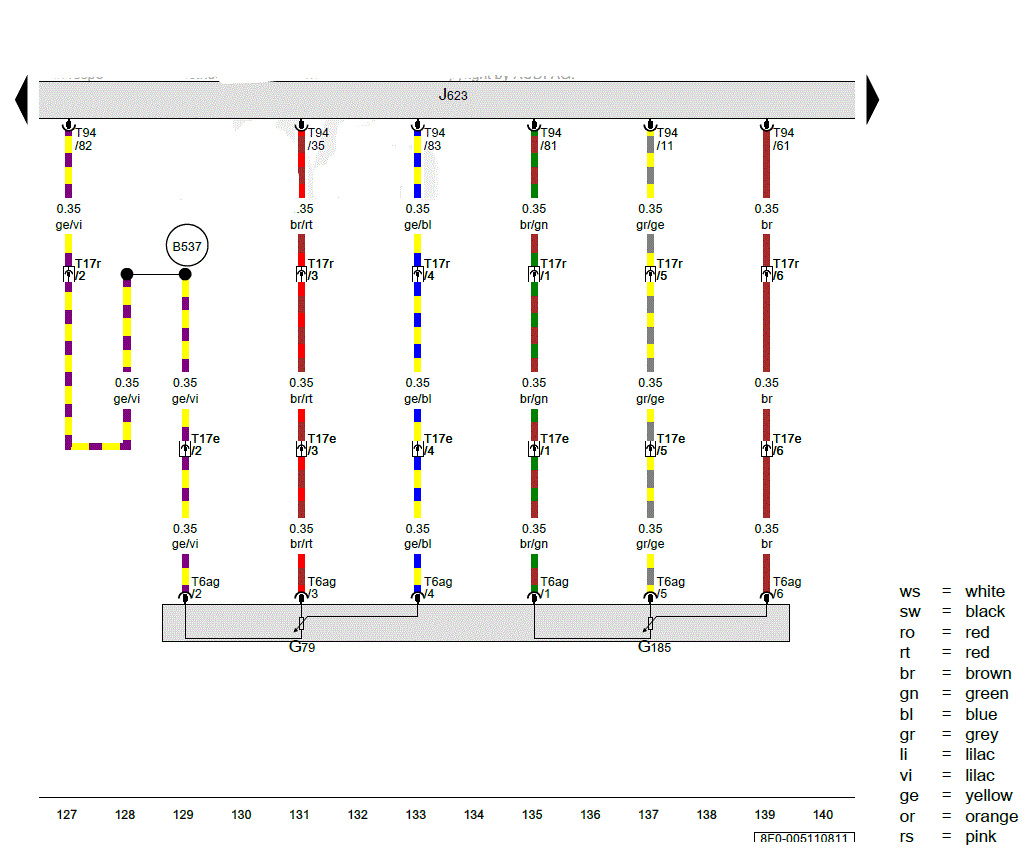

Accelerator Pedal Position Sensor, Accelerator Pedal Position Sensor 2: Notes

G00591812

Courtesy of AUDI OF AMERICA, LLC
