Removal And Installation: Radiator
Special tools and workshop equipment required
- Drip Tray VAS 6208
Removing
If there are small impressions on the fins. Refer to COOLERS, CONDENSERS AND CHARGE AIR COOLERS, INSTALLING .
-- Drain coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .
-- Remove fan shroud. Refer to FAN SHROUD .
-- Remove the bolts -arrows- and the air guide from the lock carrier.

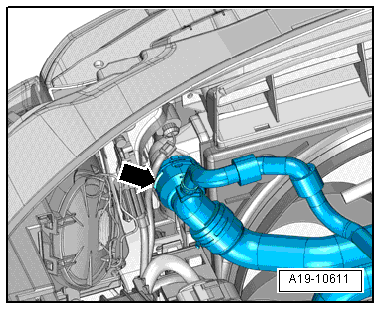

-- Lift the clamp -arrow- and remove the left upper coolant hose from the radiator.

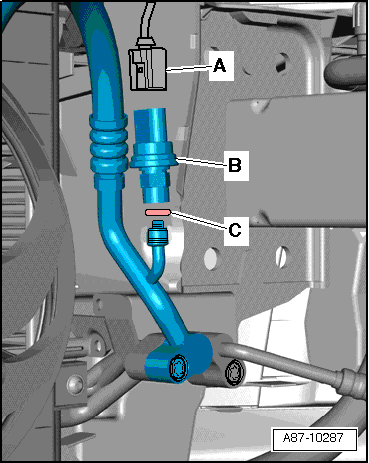

-- Disconnect the connector -A- on the high pressure sensor -G65- -B-.
Ignore -C-.
-- Place VAS 6208 under engine.
-- Remove the bolts -arrows- on the back of the radiator and remove the radiator upward.
Installing
- Tightening specifications, refer to RADIATOR AND COOLANT FAN ASSEMBLY OVERVIEW .
Installation is in reverse order of removal, note the following:
Replace the gaskets and O-rings.
Secure all hose connections with hose clamps appropriate for the model. Refer to.
-- Install fan shroud. Refer to FAN SHROUD .
-- Connect the coolant hose to the connector on the radiator RADIATOR AND COOLANT FAN ASSEMBLY OVERVIEW .
-- Fill with coolant COOLING SYSTEM, DRAINING AND FILLING .
