Rear Park Assist Assembly Overview, From 06.2008

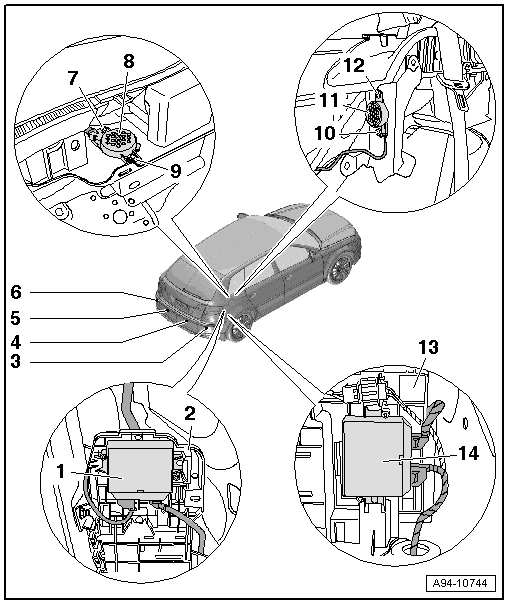

Fig 1: Rear Park Assist Assembly Overview, From 06.2008

Courtesy of AUDI OF AMERICA, LLC

1. Parking Aid Control Module -J446- - three-door
2. Bracket
   • For parking aid control module - three-door
3. Right Rear Parking Aid Sensor -G206-
   • Removing and installing, refer to REAR PARKING AID SENSORS
4. Right Rear Center Parking Aid Sensor -G205-
   • Removing and installing, refer to REAR PARKING AID SENSORS
5. Left Rear Center Parking Aid Sensor -G204-
   • Removing and installing, refer to REAR PARKING AID SENSORS
6. Left Rear Parking Aid Sensor -G203-
   • Removing and installing, refer to REAR PARKING AID SENSORS
7. Expanding clip
8. Rear Parking Aid Warning Buzzer -H15- - Sportback
   • Removing and installing, refer to REAR PARKING AID WARNING BUZZER
9. Expanding Clip
10. Expanding Clip
11. Rear Parking Aid Warning Buzzer -H15- - Three-door
12. Expanding Clip
13. Bracket
    • For parking aid control module - Sportback
14. Parking Aid Control Module - Sportback
    • Removing and installing, refer to PARKING ASSIST CONTROL MODULE
