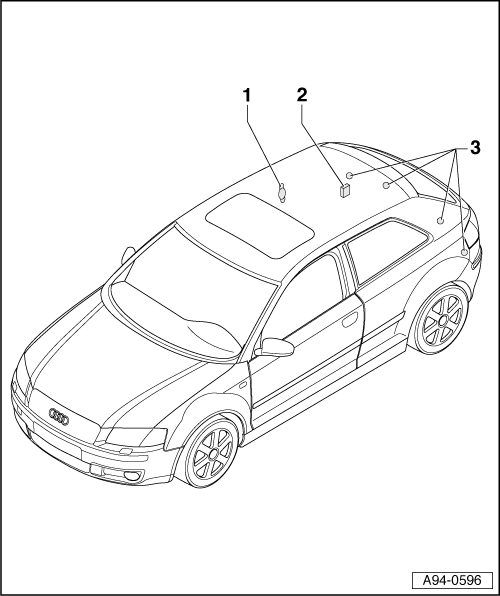

Parking Aid Assembly Overview, Through 05.2008
- Rear Parking Aid Warning Buzzer -H15-
- Under the belt guide for the rear right seat belt
- Removing and installing, refer to REAR PARKING AID WARNING BUZZER
- Parking Aid Control Module -J446-
- In luggage compartment at rear, right side, below side trim
- Removing and installing, refer to PARKING ASSIST CONTROL MODULE
- Sensor for Parking Aid
- In rear bumper
- Removing and installing, refer to REAR PARKING AID SENSORS
