Outer Tail Lamps Assembly Overview, Through 05.2008

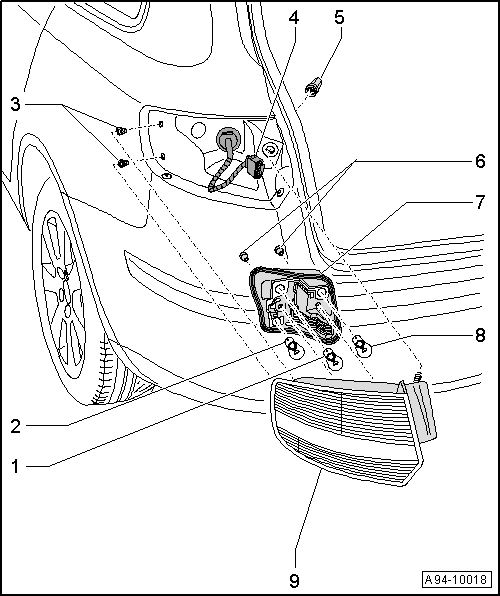

Fig 1: Identifying Rear Lights in Rear Fender, Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Turn Signal Indicator Bulb
   • 12V, 21 W
   • Orange
2. Light Bulb for Rear Lamp
   • 12V, 21 W
3. Clip Nut
4. Electrical Connector
5. Nut
   • 3.5 Nm
6. Nut
   • 3.5 Nm
   • For bulb socket
7. Lamp Socket
   • Removing and installing, refer to BULB SOCKET
8. Brake Lamp Bulb
   • 12V, 21 W
9. Outer Tail Lamps
   • Removing and installing, refer to OUTER TAIL LAMPS
