Outer Tail Lamps Assembly Overview, From 06.2008

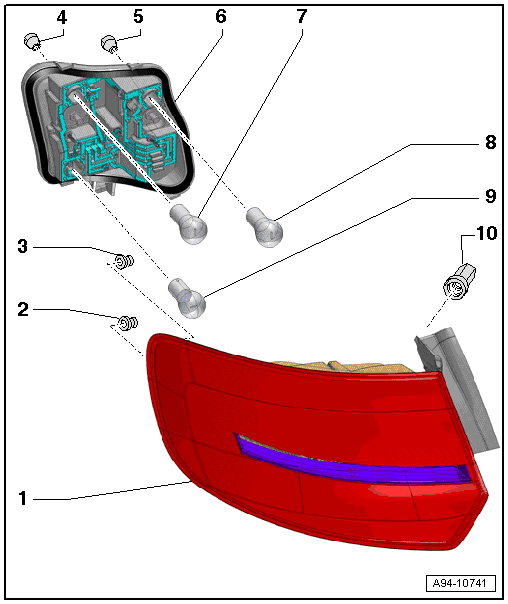

Fig 1: Identifying Outer Tail Lamps Assembly Overview, From 06.2008

Courtesy of AUDI OF AMERICA, LLC

1. Outer Tail Lamps
   • The bulbs for the tail lamps are LEDs and are integrated into the outer tail lamps. LEDs cannot be replaced. The entire outer tail lamp must be replaced.
   • Removing and installing, refer to OUTER TAIL LAMPS
2. Clip Nut
3. Clip Nut
4. Nut
   • 3.5 Nm
   • For bulb socket
5. Nut
   • For bulb socket
6. Lamp Socket
   • Removing and installing, refer to BULB SOCKET
7. Brake Lamp Bulb
   • 12V, 21 W
8. Brake Lamp Bulb
   • 12V, 21 W
9. Turn Signal Indicator Bulb
   • 12V, 21 W
   • Orange
10. Nut
    • 3.5 Nm
