Inner Tail Lamp Assembly Overview, From 06.2008

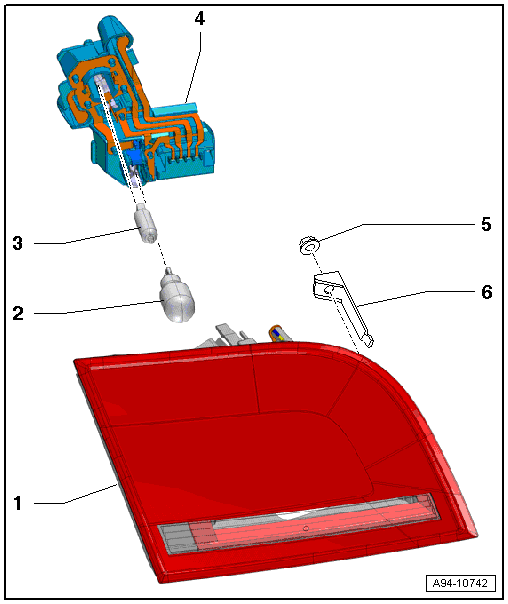

Fig 1: Identifying Inner Tail Lamp Assembly Overview, From 06.2008

Courtesy of AUDI OF AMERICA, LLC

1. Inner Tail Lamp
   • The bulbs for the tail lamps are LEDs and are integrated into the inner tail lamps. LEDs cannot be replaced. The entire inner tail lamp must be replaced.
   • Removing and installing, refer to INNER TAIL LAMPS
2. Light Bulb for Back-Up Lamp
   • 12V, 16 W
3. Light Bulb for Rear Fog Lamp
   • 12V, 21 W
4. Lamp Socket
   • Removing and installing, refer to BULB SOCKET
5. Nut
   • 3.5 Nm
6. Clamp Mounting
   • For securing housing at rear lid
