Halogen Headlamps Assembly Overview, Through 05.2008

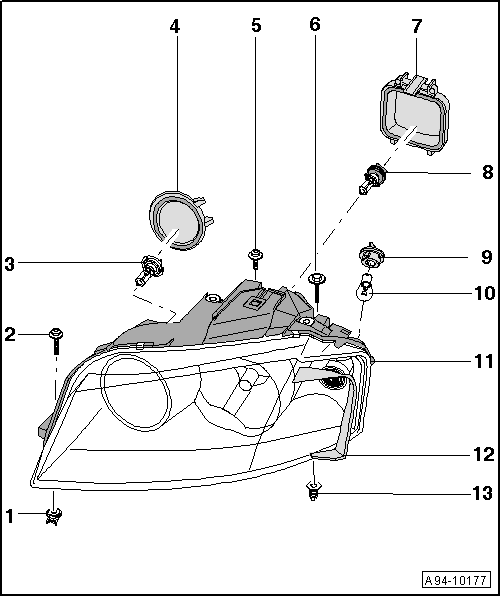

Fig 1: Identifying Halogen Headlamps, Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Adjusting Nut
   • For adjustment of headlamp to bumper contour
2. Bolt
   • 6 Nm
3. High Beam Bulb
   • H7 - 12V, 55 W
   • Bulbs, replacing, refer to HIGH BEAM BULB
4. Housing Cover
   • For high beam
5. Bolt
   • 6 Nm
6. Housing Cover
   • For low beam
7. Low Beam Bulb
   • H11 - 12V, 55 W
   • Bulbs, replacing, refer to LOW BEAM BULB
8. Lamp Socket
   • For turn signal lamp
9. Turn Signal Indicator Bulb
   • 12V, 21 W
   • Orange
   • Bulbs, replacing, refer to TURN SIGNAL BULB,
10. Bulb
    • 6 Nm
11. Headlamp Housing
12. Gap Cover
13. Adjusting Nut
    • For adjustment of headlamp to bumper contour
