Halogen Headlamps Assembly Overview, From 06.2008

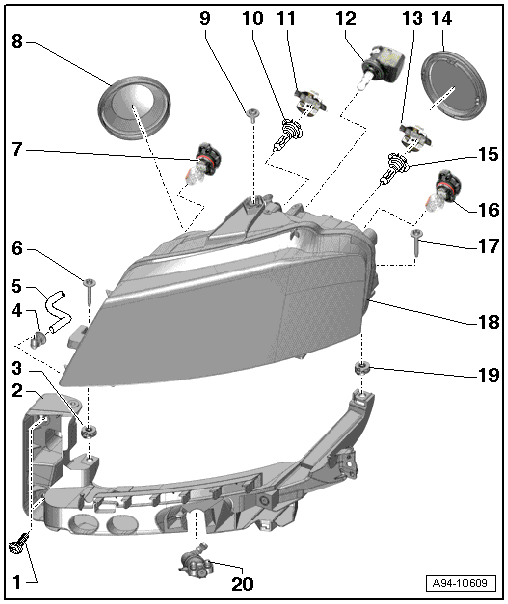

Fig 1: Identifying Halogen Headlamps Assembly Overview, From 06.2008

Courtesy of AUDI OF AMERICA, LLC

1. Screw
   • 4.5 Nm
2. Mount
   • For headlamp housing
   • Removing and installing, refer to HEADLAMP HOUSING MOUNT
3. Adjusting Nut
   • For adjustment of headlamp to bumper contour
4. Water Drain
   • For headlamp ventilation
5. Water Drain Hose
6. Screw
   • 4.5 Nm
7. Front Turn Signal Lamp
   • Left front turn signal lamp -M5-
   • Right front turn signal lamp -M7-
   • 12V, 24 W
   • PSY 24W
   • Orange
   • Replacing the bulb, refer to FRONT TURN SIGNAL BULB
8. Housing Cover
   • For high beam and turn signal
9. Screw
   • 4.5 Nm
10. High Beam Headlamp Bulb
    • Left high beam headlamp -M30-
    • Right high beam headlamp -M32-
    • H7 - 12V, 55 W
    • Replacing the bulb LEFT AND RIGHT HIGH BEAM HEADLAMP
11. Socket
    • For the high beam bulb
12. Headlamp Range Control Positioning Motor
    • Left headlamp beam adjustment motor -V48-
    • Right headlamp beam adjustment motor -V49-
    • Removing and installing HEADLAMP BEAM ADJUSTMENT MOTORS
13. Socket
    • for low beam headlamp
14. Housing Cover
    • For low beam and parking lamp
15. Low Beam Headlamp Bulb
    • Left low beam headlamp -M29-
    • Right low beam headlamp -M31-
    • H7 - 12V, 55 W
    • Replacing the bulb, refer to LOW BEAM HEADLAMP BULB
16. Daytime Running Lamp and Parking Lamp
    • Daytime running lamp and left parking lamp -L186-
    • Daytime running lamp and right parking lamp -L188-
    • 12V, 19 W
    • PS 19W
    • Replacing the bulb, refer to DAYTIME RUNNING LAMP AND PARKING LAMP
17. Screw
    • 4.5 Nm
18. Headlamp Housing
    • Removing and installing, refer to HEADLAMP HOUSING
19. Adjusting Nut
    • For adjustment of headlamp to bumper contour
20. Headlamp Washer System Spray Nozzle
