Automatic Headlamp Vertical Aim Control Assembly Overview

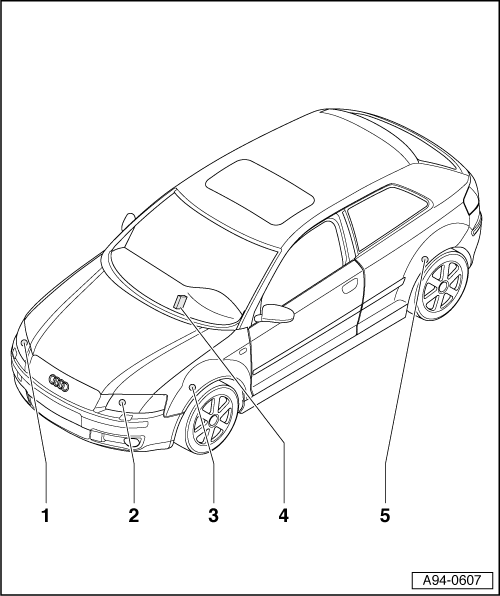

Fig 1: Automatic Headlamp Range Control, Component Overview

Courtesy of AUDI OF AMERICA, LLC

1. Right Headlamp Beam Adjustment Motor -V49-
   • Inside the headlamp
2. Left Headlamp Beam Adjustment Motor -V48-
   • Inside the headlamp
3. Left Front Level Control System Sensor -G78-
   • Component location is on left front control arm
   • Removing and installing. Refer to Removal and Installation
4. Headlamp Range Control Module -J431-
   • Component location is on the front of the central tube for the instrument panel inside the driver footwell

     Removing and installing, refer to HEADLAMP RANGE CONTROL MODULE

5. Left Rear Level Control System Sensor -G76-
   • Component location is on rear left control arm
   • Removing and installing. Refer to Removal and Installation
