Front Passenger Airbag Unit Bracket

Removing

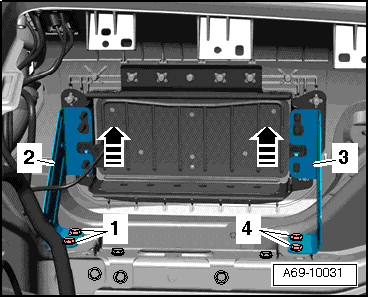

Fig 1: Disengaging Bracket -2- And -3- At Airbag Unit Guide In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front passenger airbag unit. Refer to FRONT PASSENGER AIRBAG UNIT .

-- Remove screws -1- and -4-.

-- Disengage bracket -2- and -3- at airbag unit guide in direction of -arrow-.

-- Remove the bracket for the airbag unit.

Installation

Install in reverse order of removal. Note the following:

-- Install the front passenger airbag unit. Refer to FRONT PASSENGER AIRBAG UNIT .
