Airbag Unit Harness Connector
Removing
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
-- Remove the driver airbag unit. Refer to DRIVER AIRBAG IGNITER N95 AND DRIVER AIRBAG IGNITER 2 N250 .
WARNING:
- Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

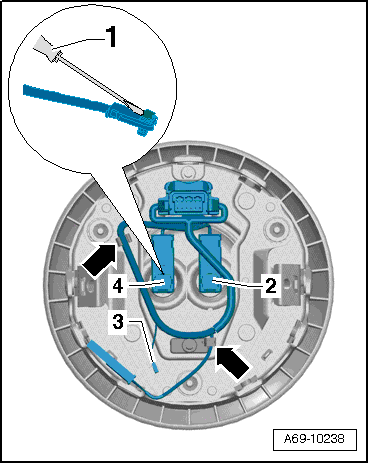

-- Disconnect electrical connections -2- and -4- on airbag with screwdriver -1-.
-- Remove connector -3-.
Installation
Install in reverse order of removal. Note the following:
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
NOTE:
Make sure the connectors are installed all the way in and are secure.
-- Install the driver airbag unit. Refer to DRIVER AIRBAG IGNITER N95 AND DRIVER AIRBAG IGNITER 2 N250 => Installation .
