Belt Relay Anchorage Point

Removing

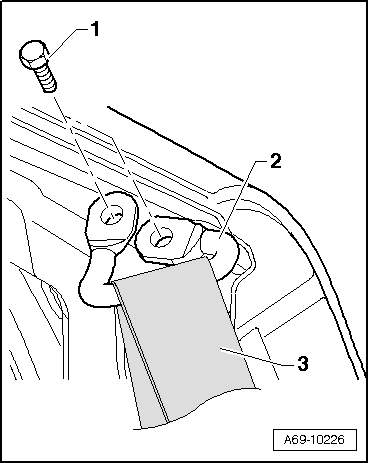

Fig 1: Removing Bolts -1- And Belt Relay -2-
GWWA69-10226Courtesy of AUDI OF AMERICA, LLC

-- Remove rear side trim. Refer to REAR SIDE TRIM ASSEMBLY OVERVIEW .

-- Remove bolts -1- and remove belt relay -2-.

-- Thread belt webbing -3- out of belt relay -2-.

Installation

Install in reverse order of removal.
