Driver Side Instrument Panel Cover

Removing

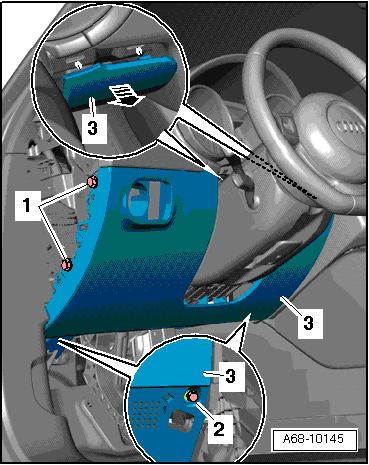

Fig 1: Removing Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp switch. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .

-- Remove side instrument panel cover INSTRUMENT PANEL SIDE COVER .

-- Remove bolts -1- (quantity: 2) and -2- (quantity: 5).

-- Unclip knee bar -3- from instrument panel at upper edge using a small screwdriver -arrow-.

-- Remove knee bar.

Installation

Install in reverse order of removal.
