Angled Bracket Above Driver Knee Airbag

Removing

-- Move driver's seat all the way back and put backrest at a 45° angle.

-- Remove knee bar (driver side instrument panel cover). Refer to DRIVER SIDE INSTRUMENT PANEL COVER .

-- Remove bolts -2- and remove angled bracket -1-.

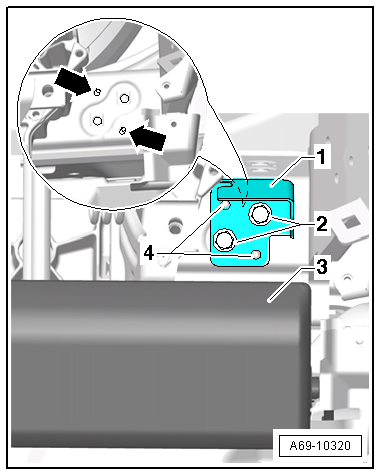

Fig 1: Removing Bolts -2- And Remove Angled Bracket -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Be careful of knee airbag -3- when removing and installing angled bracket.

Installation

Install in reverse order of removal. Note the following:

-- Insert angled bracket -1- with holes -4- in mounts -arrows- on central tube. Bend on angled bracket must face toward rear.
