Front Passenger Airbag -Disabled- Indicator Lamp K145

Removing

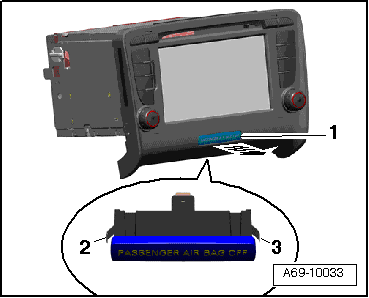

Fig 1: Front Passenger Airbag -Disabled- Indicator Lamp K145
GWWA69-10033Courtesy of AUDI OF AMERICA, LLC

-- Remove radio or navigation system. Refer to Removal and Installation .

-- Release left and right retaining springs -2- and -3- and slide Front Passenger Airbag Disabled Indicator Lamp -K145- -item 1- out -arrow-.

Installation

Install in reverse order of removal. Note the following:

-- Press indicator light into housing until it engages audibly.
