Driver Airbag Igniter N95 And Driver Airbag Igniter 2 N250: Notes
Removing
-- Position the steering wheel so that it is as far rearward and up as possible, using the full adjustment range of the steering column adjuster.
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORAGE, TRANSPORTING AND DISPOSAL .
-- Switch off the ignition.
-- Disconnect battery ground cable. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .
-- Remove cover cap -1- left and right from backside of steering wheel -arrow-.
-- Remove screw -arrow- at left and right on back side of steering wheel.
-- Bring steering wheel to center position (wheels straight).
-- Pull the driver airbag unit from the steering wheel a bit.
- Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

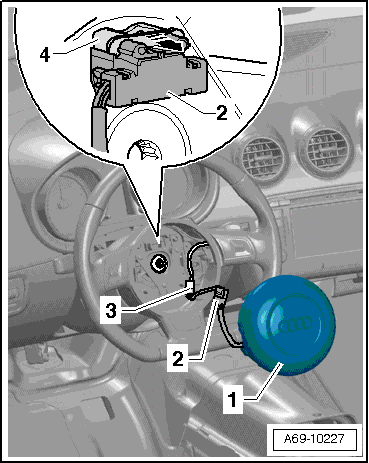

-- Pull the connector lock -4- up to the stop -arrow- to disconnect the connector -2-.
-- Remove airbag unit -1- from the steering wheel.
-- If applicable, disconnect electrical connection -3-.
-- Set the airbag unit down so that the padding faces upward.
