Front Three-Point Seat Belt Assembly Overview

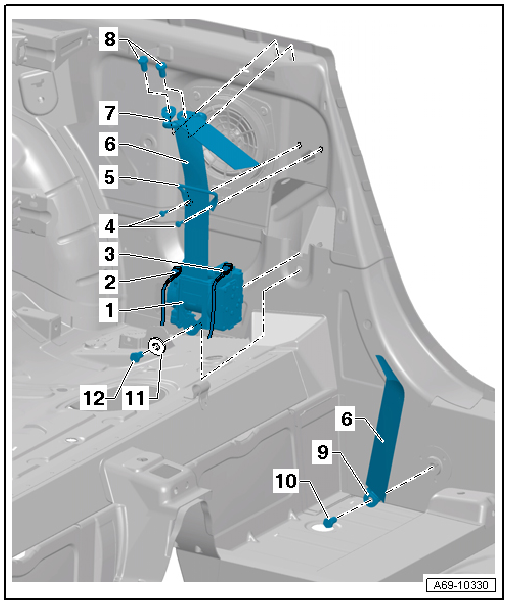

Fig 1: Front Three-Point Seat Belt Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Three-point seat belt
   • without switchable belt load limiter
     • Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
   • With switchable force limiter (country-specific)
     • Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
2. Switchable belt load limiter connector
   • Versions for specific countries:
   • Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
3. Belt tensioner connector
   • Removing and installing THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
4. Bolt
   • 4.5 Nm
   • Quantity: 2
5. Retainer
6. Belt webbing
7. Belt guide ring
8. Bolt
   • 45 Nm
   • Quantity: 2
9. Belt anchor
   • Removing and Installing, refer to FRONT OUTER BELT END FITTING
10. Bolt
    • 55 Nm
11. Washer
12. Bolt
    • 45 Nm
