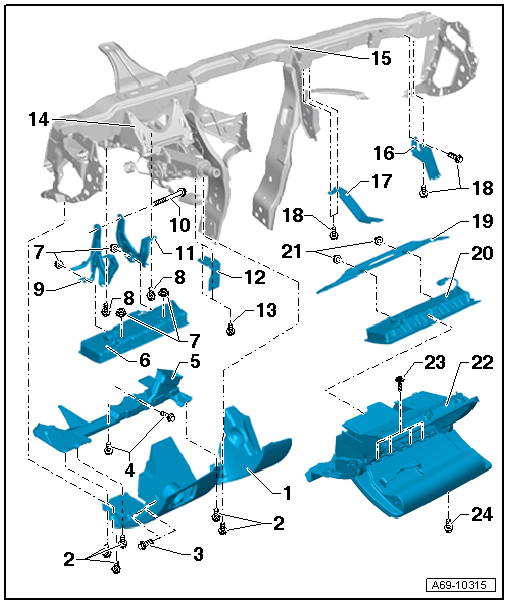

Front Knee Airbags Overview
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Knee bar
- Driver side instrument panel cover on vehicles with knee airbag
- Removing and Installing, refer to DRIVER SIDE INSTRUMENT PANEL COVER
- Bolt
- 2.5 Nm
- Quantity: 5
- Bolt
- 2.5 Nm
- Quantity: 2
- For knee bar to instrument panel bracket
- Bolt
- 2.5 Nm
- Quantity: 2
- For the driver footwell air guide channel to the left FRONT KNEE AIRBAGS OVERVIEW and right FRONT KNEE AIRBAGS OVERVIEW supports
- Driver footwell air guide channel
- Removing and Installing, refer to DRIVER KNEE AIRBAG.
- Driver side knee airbag
- Removing and Installing, refer to DRIVER KNEE AIRBAG
- Nut
- 9 Nm
- Quantity: 4
- For driver side knee airbag to left supports FRONT KNEE AIRBAGS OVERVIEW and right supports FRONT KNEE AIRBAGS OVERVIEW
- Bolt
- Left support
- Driver side
- Removing and Installing, refer to LEFT AND RIGHT DRIVER KNEE AIRBAG SUPPORTS
- Bolt
- Right support
- Driver side
- Removing and Installing, refer to LEFT AND RIGHT DRIVER KNEE AIRBAG SUPPORTS
- Angle bracket
- Removing and Installing, refer to ANGLED BRACKET ABOVE DRIVER KNEE AIRBAG
- Bolt
- 9 Nm
- Quantity: 2
- For angled bracket to central tube
- Bracket
- For steering column
- Central Tube
- Right support
- Passenger side
- Removing and Installing, refer to LEFT AND RIGHT PASSENGER KNEE AIRBAG SUPPORTS
- Left support
- Passenger side
- Removing and Installing, refer to LEFT AND RIGHT PASSENGER KNEE AIRBAG SUPPORTS
- Bolt
- 9 Nm
- Quantity: 4
- lower support
- Installed inside the glove compartment
- Removing and Installing, refer to PASSENGER KNEE AIRBAG
- Passenger side knee airbag
- Removing and Installing, refer to PASSENGER KNEE AIRBAG
- Nut
- 9 Nm
- for knee airbag FRONT KNEE AIRBAGS OVERVIEW to lower support
- Glove compartment
- for vehicles with knee airbags
- Removing and Installing, refer to PASSENGER KNEE AIRBAG
- Bolt
- 3 Nm
- Quantity: 4
- For attaching the knee airbag FRONT KNEE AIRBAGS OVERVIEW to the glove compartment
- Bolt
- 2.5 Nm
- Quantity: 7
- For attaching the glove compartment to the central tube
