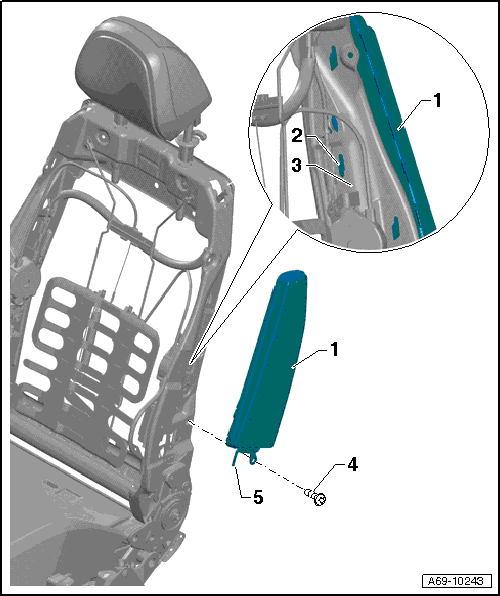

Front Side Airbag Assembly Overview
- Side AirbagWARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Follow the additional safety precautions when working with the side airbag. Refer to SIDE AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
- Removing and Installing, refer to SIDE AIRBAG
- Inserted in pocket >>pocket not shown<<
- Pocket sewn with cover
- Hook
- Quantity: 4
- For securing side airbag to seat frame
- Backrest frame
- Bolt
- 10 Nm
- Wiring harness
- From the side airbag to the body
