Front Passenger Airbag Deactivation Passenger Occupant Detection System Assembly Overview
WARNING:
- Follow the additional safety precautions for working on the passenger airbag deactivation passenger occupant detection system. Refer to PASSIVE OCCUPANT DETECTION SENSOR ADDITIONAL SAFETY PRECAUTIONS .
- Follow the procedure for the passenger airbag deactivation passenger occupant detection system after a crash. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, PROCEDURE AFTER AN ACCIDENT .
- The replacement part (service kit) for the passenger occupant detection system (for specific countries) is already precalibrated and must not be separated under any circumstances. Refer to PASSIVE OCCUPANT DETECTION SYSTEM .
WARNING:
The passenger occupant detection system service kit is precalibrated and must not be disconnected. The service kit consists of:
- Seat Occupied Recognition Control Module -J706-
- Seat Occupied Recognition Pressure Sensor -G452-
- Passive Occupant Detection System Mat
- Seat cushion
- Wiring harness between the seat occupied recognition control module -J706- and the seat occupied recognition pressure sensor -G452-.

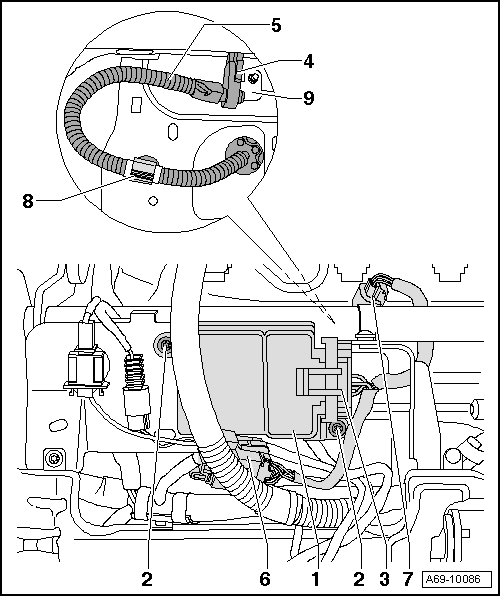

- Seat Occupied Recognition Control Module -J706-
- Must not be disconnected and replaced separately under any circumstances
- Replacing is only possible with the entire service kit PASSIVE OCCUPANT DETECTION SYSTEM
- Bolt
- 2.5 Nm
- Quantity: 2
- Connector on Seat Occupied Recognition Control Module -J706-
- Must not be separated under any circumstances.
- Seat Occupied Recognition Pressure Sensor -G452-
- Must not be disconnected and replaced separately under any circumstances
- Replacing is only possible with the entire service kit PASSIVE OCCUPANT DETECTION SYSTEM
- Pressure hose
- Connector between service kit and seat wiring harness
- Connector on Seat Occupied Recognition Pressure Sensor -G452-
- Must not be separated under any circumstances.
- Guide clip
- Retaining bracket
