Top Tether Child Seat Anchorages Assembly Overview

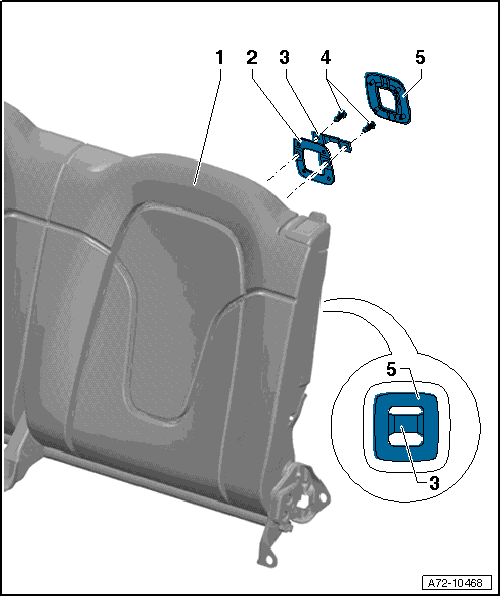

Fig 1: Top Tether Child Seat Anchorages Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Backrest
2. Inner trim
   • Removing and Installing, refer to TOP TETHER CHILD SEAT ANCHORAGE
3. Retainer
   • Removing and Installing, refer to TOP TETHER CHILD SEAT ANCHORAGE
4. Bolt
   • 4 Nm
   • Quantity: 4
5. Outer trim
   • Removing and Installing, refer to TOP TETHER CHILD SEAT ANCHORAGE
